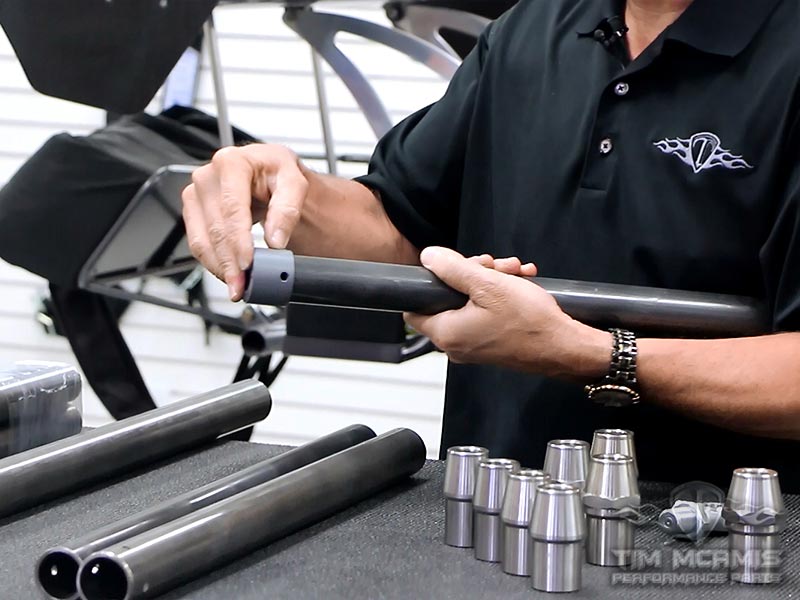

Four Link Bar Kit Fixture
HD 4-Link Bar Kit
1-3/8" 4-Link Bar Kit
Four Link Bar Kit Fixture

Unwelded 4-Link Bar Kit (1-3/8″)

5 out of 5
1 customer review|Add a review

$179.95

Unwelded 4-Link Bar Kit (1-3/8″). Watch the short video below to learn more!

INCLUDES:
• 1-3/8” Diameter 4130 Tubes (21″ Long)
• HD Right & Left Hand Tube Adapters
• Drill Location Guide
• Detailed Instructions

SKU: TMR-1173UK-HD

4-LINK HARDWARE OPTIONS

  • Would you like to see hardware options? *

  • Will you be using 1/2" or 5/8" 4-Link Bolts? *

  • 1/2" Rod End Options *

    1/2″ Bore-3/4″-16 Thread RH + $61.98
    1/2″ Bore-3/4″-16 Thread LH + $61.98
    3/4″-16 RH. Jam Nut Steel + $1.73
    3/4″-16 LH. Jam Nut Steel + $1.95

    Most 4-Link installations use 2 right hand and 2 left hand rod ends. Don't forget to include jam nuts! All quantities are independent.

  • 1/2" Bolts & Hardware *

    1/2″ NAS BOLT: 1.92”L X 1.188”GR – (4-LINK BOLT) + $16.30
    1/2″ NAS BOLT: 2.078”L X 1.625”GR – (4-LINK BOLT W/ DOUBLERS) + $23.95
    1/2″-20 Thin Nyloc Nut + $4.86
    1/2″ AN Washer + $0.26
    Billet 4-Link Chassis Bracket Bolt Kit (HIMIS) + $195.00

    Use two washers and one nut per bolt. Bolt options for standard bracket width or brackets with doublers. All quantities are independent. *Billet Bracket 4-Link Bolt Kit designed specifically for TMR-2500 Billet Chassis Brackets only.

  • 5/8" Rod End Options *

    5/8″ Bore-3/4″-16 Thread RH + $46.00
    5/8″ Bore-3/4″-16 Thread LH + $46.00
    3/4″-16 RH. Jam Nut Steel + $1.73
    3/4″-16 LH. Jam Nut Steel + $1.95

    Most 4-Link installations use 2 right hand and 2 left hand rod ends. Don't forget to include jam nuts! All quantities are independent.

  • 5/8" Bolts & Hardware *

    5/8″ NAS BOLT: 1.876”L X 1.25”GR – (4-LINK BOLT) + $24.95
    5/8″ NAS BOLT: 2.231”L X 1.688”GR – (4-LINK BOLT W/ DOUBLERS) + $26.93
    5/8”-18 Thin Nyloc Nut + $3.82
    5/8″ AN Washer + $0.52

    Use two washers and one nut per bolt. Bolt options for standard bracket width or brackets with doublers. All quantities are independent.

Description

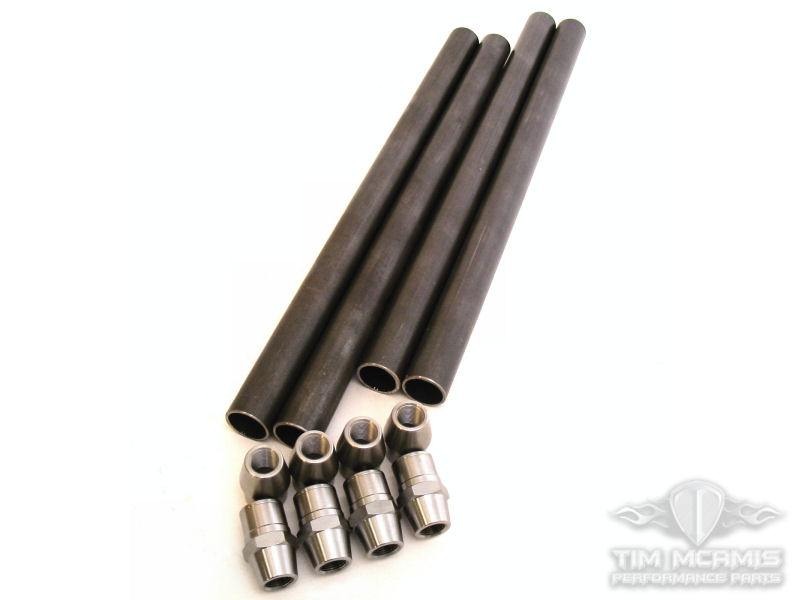

Kit includes four 21″ pieces of 1.375″ X 0.095″ 4130 moly tubing. Four ea. 3/4″ RH & LH tube adapters. LH tube adapters have 1-1/4″ hex for adjustment.

Tube Length = 21”
Maximum Bar Length = 23” (Including Tube Adapters)
*WELDING REQUIRED, USE ER70S2 WELDING ROD

Check out the video below for a detailed look at the kit and overview of the installation process!

Watch a quick video on 4-link basics below.

Video

Check out the video below for a detailed look at the kit and overview of the installation process!

Video: 4-Link Basics

Watch a quick video on 4-link basics below.

Country Of Origin

United States of America

1 review for Unwelded 4-Link Bar Kit (1-3/8″)

  1. 5 out of 5

    Bryan R *VERIFIED PURCHASE* –

    Great quality kit ! DETAILED INSTRUCTIONS with fixtures. Well packaged INCLUDING the decal and made PROUDLY in the U.S.A. And it shows!
