Unwelded 4-Link Bar Kit (1-1/2” & 1-5/8″)

0 out of 5
( There are no reviews yet. )

$335.00

If your car makes over 1,500 horsepower or weighs more than a Peterbilt your standard 4-Link bars are probably more stressed than James Comey during a congressional hearing. This extremely heavy duty 4-link bar kit provides the necessary pieces to build a custom set of 4-link bars that will not crumble under pressure. More importantly, the large diameter bars will reduce deflection in your suspension for greater consistency pass after pass.

Check out the video below for a look at the kit, it’s benefits and a detailed overview of the installation process!

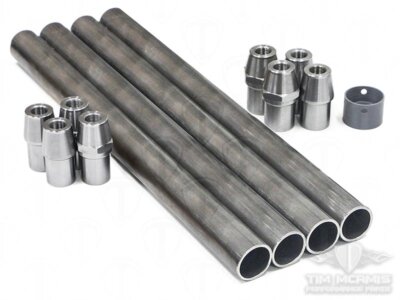

INCLUDES:
• 1-1/2” Diameter 4130 Tubes (Upper 4-Link Bars)
• 1-5/8” Diameter 4130 Tubes (Lower 4-Link Bars)
• HD Right & Left Hand Tube Adapters
• Drill Location Guide
• Detailed Instructions

SKU: TMR-1173UK-XHD

4-LINK HARDWARE OPTIONS

  • Would you like to see hardware options? *

  • Will you be using 1/2" or 5/8" 4-Link Bolts? *

  • 1/2" Rod End Options *

    1/2″ Bore-3/4″-16 Thread RH + $61.98
    1/2″ Bore-3/4″-16 Thread LH + $61.98
    3/4″-16 RH. Jam Nut Steel + $1.73
    3/4″-16 LH. Jam Nut Steel + $1.95

    Most 4-Link installations use 2 right hand and 2 left hand rod ends. Don't forget to include jam nuts! All quantities are independent.

  • 1/2" Bolts & Hardware *

    1/2″ NAS BOLT: 1.92”L X 1.188”GR – (4-LINK BOLT) + $16.30
    1/2″ NAS BOLT: 2.078”L X 1.625”GR – (4-LINK BOLT W/ DOUBLERS) + $23.95
    1/2″-20 Thin Nyloc Nut + $4.86
    1/2″ AN Washer + $0.26
    Billet 4-Link Chassis Bracket Bolt Kit (HIMIS) + $195.00

    Use two washers and one nut per bolt. Bolt options for standard bracket width or brackets with doublers. All quantities are independent. *Billet Bracket 4-Link Bolt Kit designed specifically for TMR-2500 Billet Chassis Brackets only.

  • 5/8" Rod End Options *

    5/8″ Bore-3/4″-16 Thread RH + $46.00
    5/8″ Bore-3/4″-16 Thread LH + $46.00
    3/4″-16 RH. Jam Nut Steel + $1.73
    3/4″-16 LH. Jam Nut Steel + $1.95

    Most 4-Link installations use 2 right hand and 2 left hand rod ends. Don't forget to include jam nuts! All quantities are independent.

  • 5/8" Bolts & Hardware *

    5/8″ NAS BOLT: 1.876”L X 1.25”GR – (4-LINK BOLT) + $24.95
    5/8″ NAS BOLT: 2.231”L X 1.688”GR – (4-LINK BOLT W/ DOUBLERS) + $26.93
    5/8”-18 Thin Nyloc Nut + $3.82
    5/8″ AN Washer + $0.52

    Use two washers and one nut per bolt. Bolt options for standard bracket width or brackets with doublers. All quantities are independent.

Description

Build your custom 4-Link Bars using this extremely heavy duty Unwelded 4-Link Bar Kit. This kit features 4130 steel tubes in 1-1/2” and 1-5/8” diameters that reduce suspension deflection and create a more consistent race car. Perfect for every door slammer from Top Sportsman to Drag Radial, and Pro Modified.

Tube Length = 21”
Maximum Bar Length = 23” (Including Tube Adapters)
*WELDING REQUIRED, USE ER70S2 WELDING ROD

Check out the video below for a look at the kit, it’s benefits and a detailed overview of the installation process!<br

INCLUDES:
• 1-1/2” Diameter 4130 Tubes (Upper 4-Link Bars)
• 1-5/8” Diameter 4130 Tubes (Lower 4-Link Bars)
• HD Right & Left Hand Tube Adapters
• Drill Location Guide
• Detailed Instructions

Video

Check out the video below for a detailed look at the kit and overview of the installation process!

Video: 4-Link Basics

Watch a quick video on 4-link basics below.

Country of Origin

United States of America
