4-Link Housing Plate

0 out of 5
( There are no reviews yet. )

$99.00

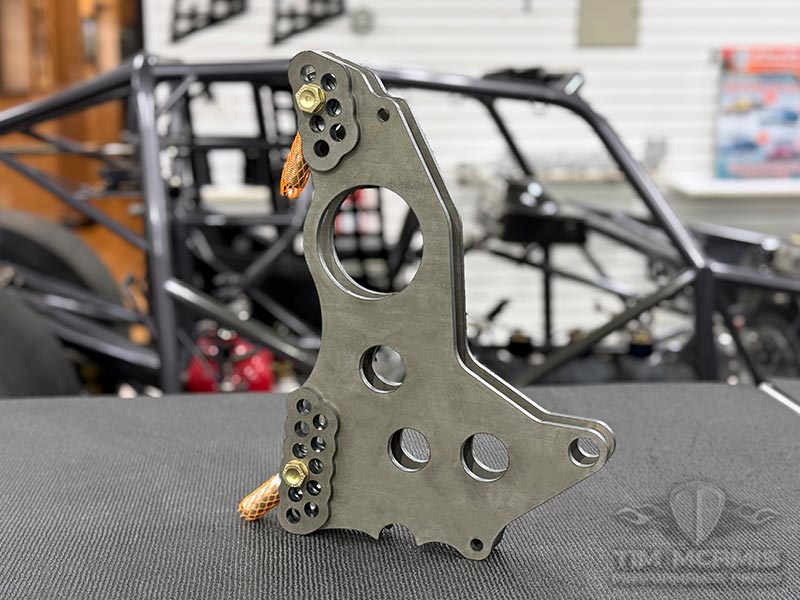

These 4130 steel Rear End Housing 4-Link Brackets feature our latest “Super Spread” bracket variation which provides a substantial range of 4-link adjustability to combinations which prefer a fixed shock mount. (Read full description below for more detail.)

Priced individually, brackets can only be purchased in groups of four. Optional bolt hole doublers are highly recommended for vehicles over 2,000 horsepower.

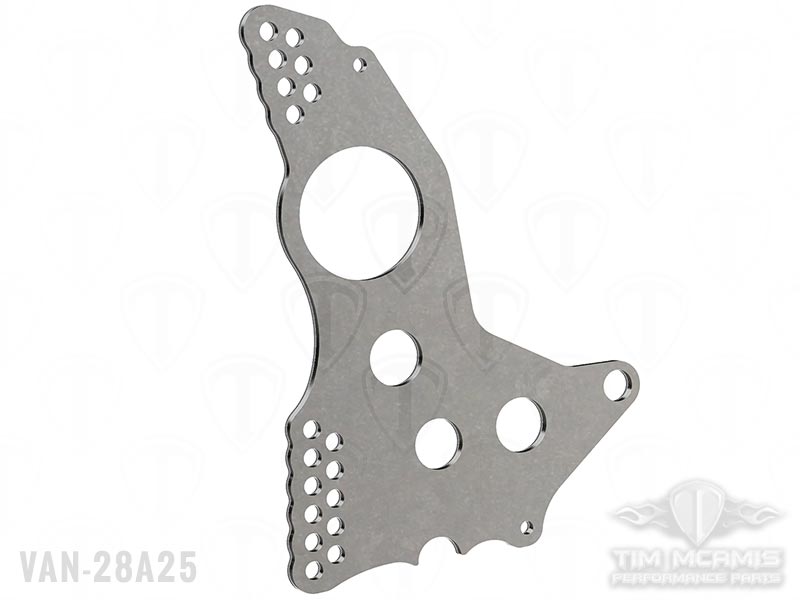

VAN-28A25 Specifications:
• 0.250” Thick 4130 Plate (Weld-On)
• 3-1/2” Axle Tube Diameter Hole
• Fixed Shock Mount Spud Location
• Lower Wheelie Bar Mounting Hole
• Integrated ProJack Lift Point
• 7 Upper 4-Link Locations with 3/8” Increments
• 11 Lower 4-Link Locations with 3/8” Increments
• Made In USA

Use With:

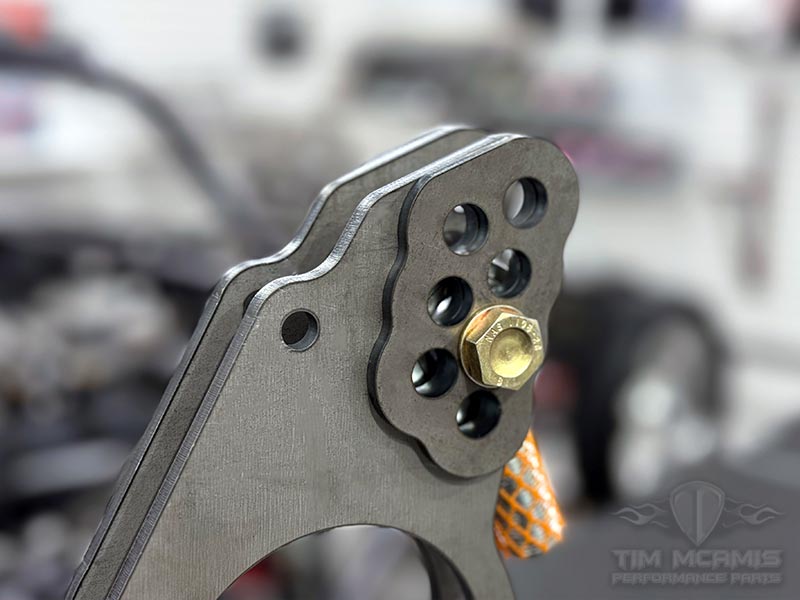

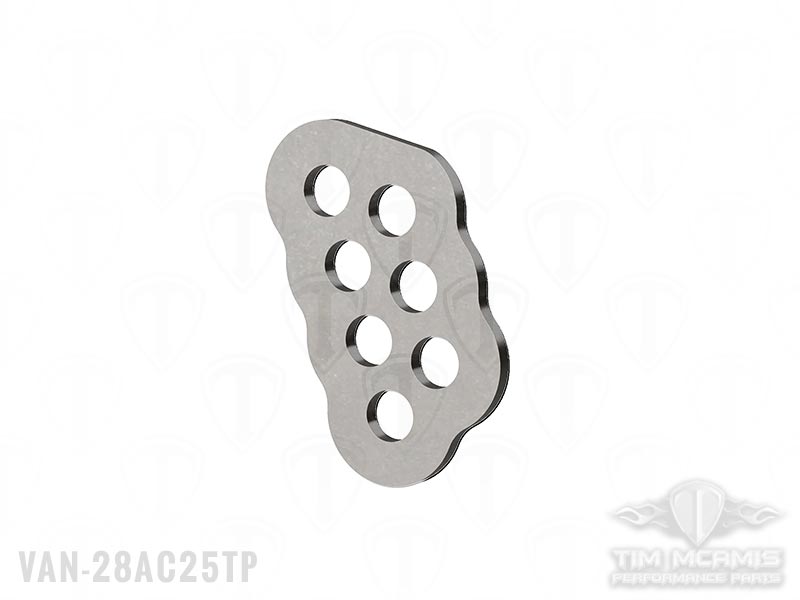

• Upper 4-Link Hole Doublers Optional (Sold Separately) VAN-28AC25TP

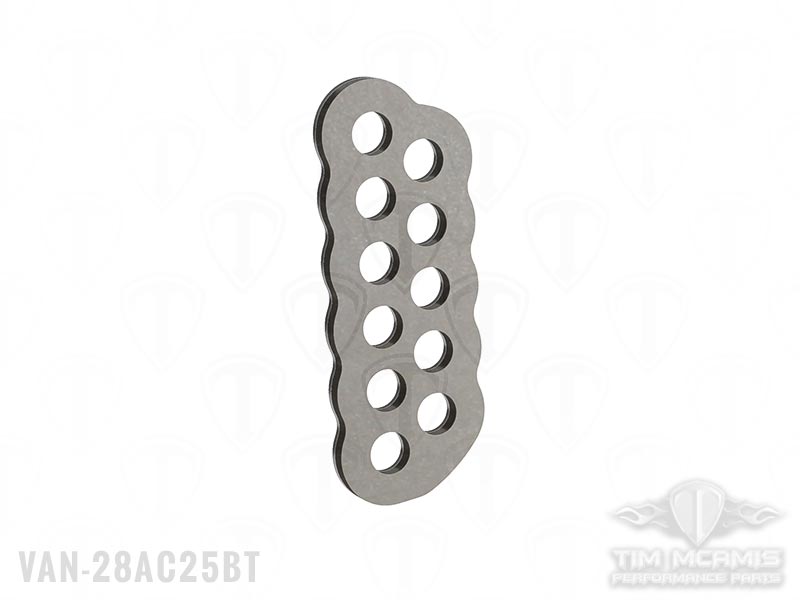

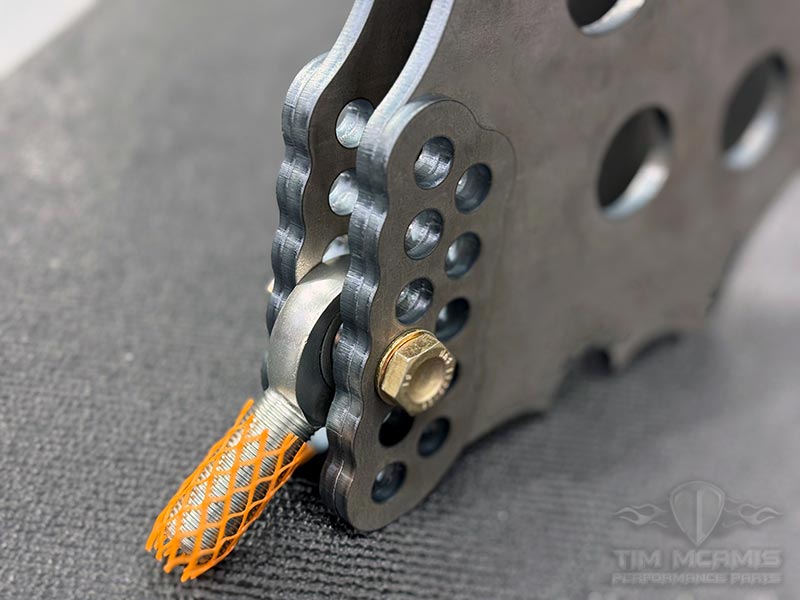

• Lower 4-Link Hole Doublers Required (Sold Separately) VAN-28AC25BT

SKU: VAN-28A25

  • Add Doublers? *

    Housing Plate Doubler (Top) + $24.50
    Housing Plate Doubler (Bottom) + $28.00

    Priced individually. Selecting these options will add 4/ea with your brackets.

  • Recommended Items *

    4-Link Bracket Weld Spacer Set + $55.00
    Shock Spud + $15.00

    Recommended with 2 shock mount spuds.

You may also like…

Description

Based off a combination of our race-proven VAN-28A and VAN-28C housing Brackets which have consistently won in every category of door slammer racing since 1992, the latest “Super Spread” variation takes things to another next level.



Designed for housings with 3-1/2” diameter axle tubes, the VAN-28A25 4-Link Housing Bracket incorporates seven upper adjustment holes with 3/8” increments that reach roughly 5” from axle centerline.

The lower half of the bracket features eleven adjustment locations spread out nearly 9-1/2” from axle centerline.

The integrated Shock Mount Spud location supports the addition of our TMR-1102 Shock Spud.

ADDITIONAL FEATURES

Along with advanced 4-link geometry, this bracket contains integrated wheelie bar mounts, properly aligned and clearanced anti-roll bar mount and a convenient ProJack lift spot.

Every corner and edge of this bracket was analyzed for weight optimization without sacrificing strength or longevity of the bracket.

Whether you’re building or updating a Pro Mod, Drag Radial, No Prep or Bracket car, the VAN-28C25 4-Link Housing Brackets provide a solid foundation for your four-link suspension and are proudly MADE IN USA.



USE WITH:
• Upper 4-Link Hole Doublers Optional (Sold Separately) VAN-28AC25TP
• Lower 4-Link Hole Doublers Required (Sold Separately) VAN-28AC25BT

Country of Origin

United States of America
