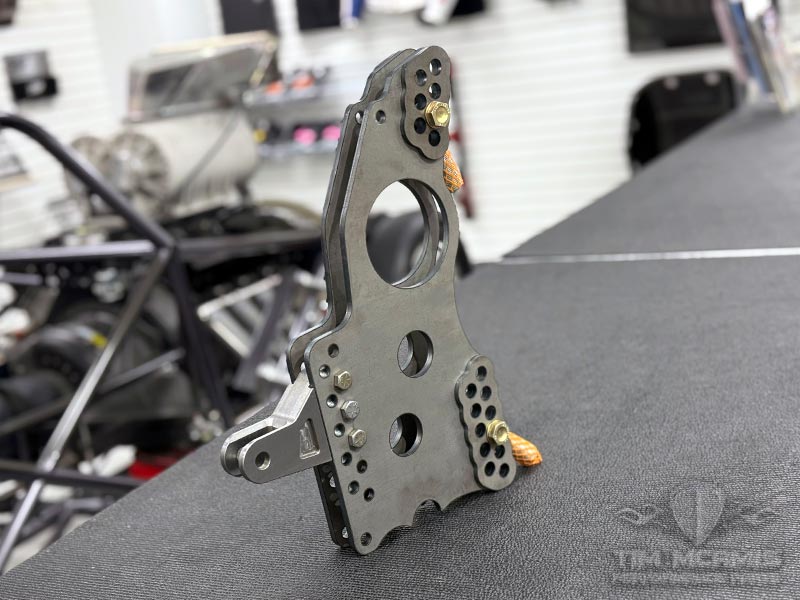

4-Link Housing Plate Adjustable Shock Mount
4-Link Housing Plate Adjustable Shock Mount
4-Link Housing Plate Top Doubler
4-Link Housing Plate Bottom Doubler
4-Link Housing Plate Configuration
4-Link Housing Plate Adjustable Shock Mount
4-Link Housing Plate Adjustable Shock Mount
4-Link Housing Plate Top Doubler
4-Link Housing Plate Bottom Doubler
4-Link Housing Plate Configuration

4-Link Housing Plate (Adj. Shock Mount)

0 out of 5
( There are no reviews yet. )

$105.00

These 4130 steel Rear End Housing 4-Link Brackets feature Adjustable Shock Mount provisions that allow the use of virtually any tire and shock combination on the same rear end housing!

The “Super Spread” series bracket provides a substantial range of 4-link adjustability to meet the demands of Pro Mod, Drag Radial, No Prep and anything else you can throw at (Read full description below for more detail.)

Priced individually, brackets can only be purchased in groups of four. Optional bolt hole doublers are highly recommended for vehicles over 2,000 horsepower.

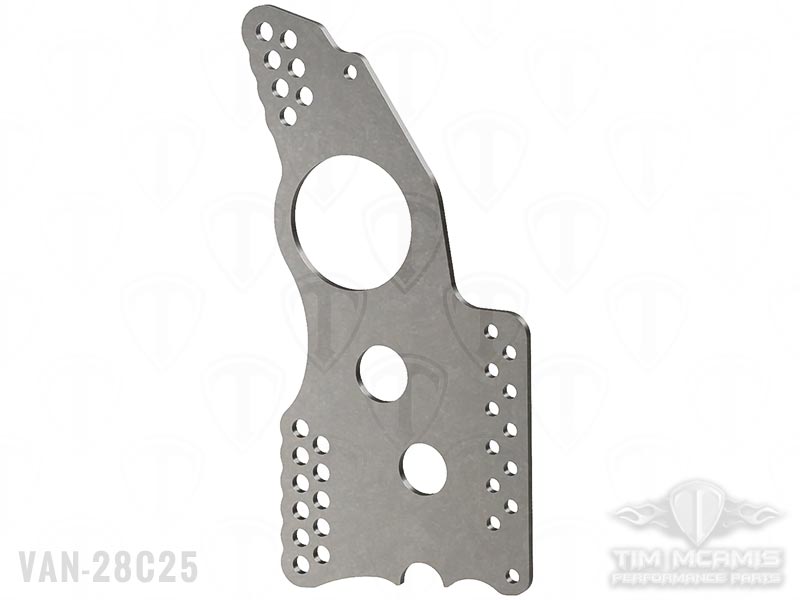

VAN-28C25 Specifications:
• 0.250” Thick 4130 Plate (Weld-On)
• 3-1/2” Axle Tube Diameter Hole
• Lower Wheelie Bar Mounting Hole
• Provision for Anti-Roll Bar Link
• Integrated ProJack Lift Point
• Adjustable Shock Mount Locations Up to 4” in 1/2” Increments
• 7 Upper 4-Link Locations with 3/8” Increments
• 11 Lower 4-Link Locations with 3/8” Increments
• Made In USA

Use With:
• Upper 4-Link Hole Doublers Optional (Sold Separately) VAN-28AC25TP
• Lower 4-Link Hole Doublers Required (Sold Separately) VAN-28AC25BT
• Adjustable Shock Mounts (Sold Separately) TMR-1215

SKU: VAN-28C25

  • Add Doublers? *

    Housing Plate Doubler (Top) + $24.50
    Housing Plate Doubler (Bottom) + $28.00

    Priced individually. Selecting these options will add 4/ea with your brackets.

  • Shock Mount Options *

    Adjustable Shock Mount – Center + $125.00
    Adjustable Shock Mount – Left + $125.00
    Adjustable Shock Mount – Right + $125.00
    Adjustable Shock Mount Bolt Kit + $14.95

    If using "Center Mount" shock brackets, add 2qty. If using L/R, add one of each. Both mount types require Adj. Shock Mount Bolt Kit.

You may also like…

Description

The 4-Link suspension is ideal for making a modern drag car work. Whether you are making your car squat or separate, having the correct geometry to meet those requirements is critical.

Based off our race-proven VAN-28C Housing Brackets which have consistently won in every category of door slammer racing since 2016, the latest “Super Spread” variation takes things to another next level.



SPECIFICATIONS

Designed for housings with 3-1/2” diameter axle tubes, the VAN-28C25 4-Link Housing Bracket incorporates seven upper adjustment holes with 3/8” increments that reach roughly 5” from axle centerline.

The lower half of the bracket features eleven adjustment locations spread out nearly 9-1/2” from axle centerline.

The integrated Adjustable Shock Mount locations allow you to run virtually any tire and shock combination. Our race-proven Billet Shock Mounts are a perfect complement to this bracket set and provided up to 4” of height adjustment over 1/2″ increments. CNC machined from 4140 steel; the TMR-1215 series Adjustable Shock Mounts provide superior rigidity for your suspension in comparison to aluminum shock mounts.

TMR-1215 Adjustable Shock Mounts Sold Separately.

ADDITIONAL FEATURES

Along with advanced 4-link geometry and Adjustable Shock Mounts, this bracket contains integrated wheelie bar mounts, properly aligned and clearanced anti-roll bar mount and a convenient ProJack lift spot.

Every corner and edge of this bracket was analyzed for weight optimization without sacrificing strength or longevity of the bracket.

Whether you’re building or updating a Pro Mod, Drag Radial, No Prep or Bracket car, the VAN-28C25 4-Link Housing Brackets provide a solid foundation for your four-link suspension and are proudly MADE IN USA.

USE WITH:
• Upper 4-Link Hole Doublers Optional (Sold Separately) VAN-28AC25TP
• Lower 4-Link Hole Doublers Required (Sold Separately) VAN-28AC25BT
• Adjustable Shock Mounts (Sold Separately) TMR-1215

Watch the video below for more information on Adjustable Shock Mounts.

Video

Watch the video below for more information on Adjustable Shock Mounts.

Country of Origin

United States of America
