1/2″ NAS BOLT: 2.078”L X 1.625”GR – (4-LINK BOLT W/ DOUBLERS)

0 out of 5
( There are no reviews yet. )

$23.95

Used as a 4-link bolt for a bracket with doubler, this 1/2” diameter NAS Hex Head Bolt is 2.078” long (under the head) and contains a 1.625” grip length with 20 threads per inch.

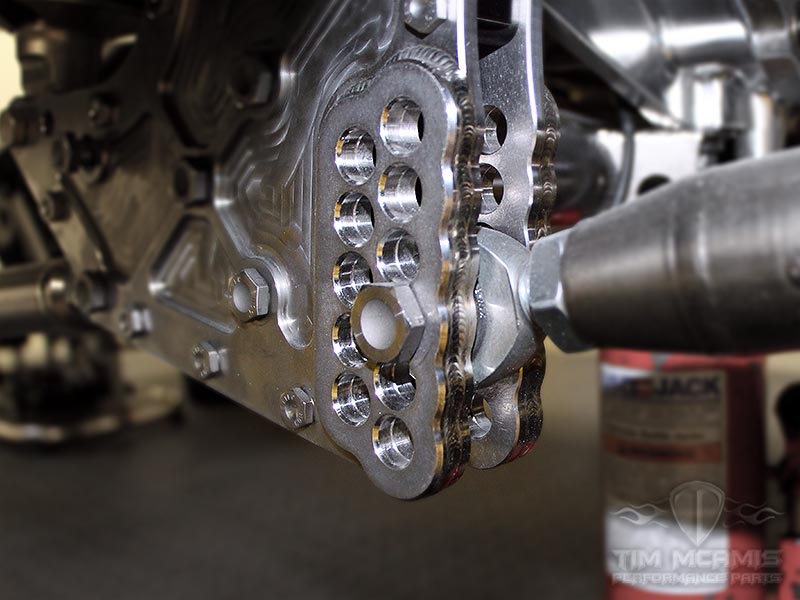

This bolt is perfect for 1/4″ thick 4-link brackets with 3/16″ thick bolt hole doublers.

SKU: CFI-NAS1108-26

RECOMMENDED WITH 1/2" 4-LINK BOLT

Would you like to see hardware options? *

Bolt Hardware *

Use two washers and one nut per bolt. All quantities are independent.
1/2″-20 Thin Nyloc Nut + $4.86
1/2″ AN Washer + $0.26

Rod Ends & Jam Nuts *

Most 4-Link installations use 2 right hand and 2 left hand rod ends. Don't forget to add the appropriate number of bolts to your cart below.
1/2″ Bore-3/4″-16 Thread LH + $61.98
1/2″ Bore-3/4″-16 Thread RH + $61.98
3/4″-16 LH. Jam Nut Steel + $1.95
3/4″-16 RH. Jam Nut Steel + $1.73

Description

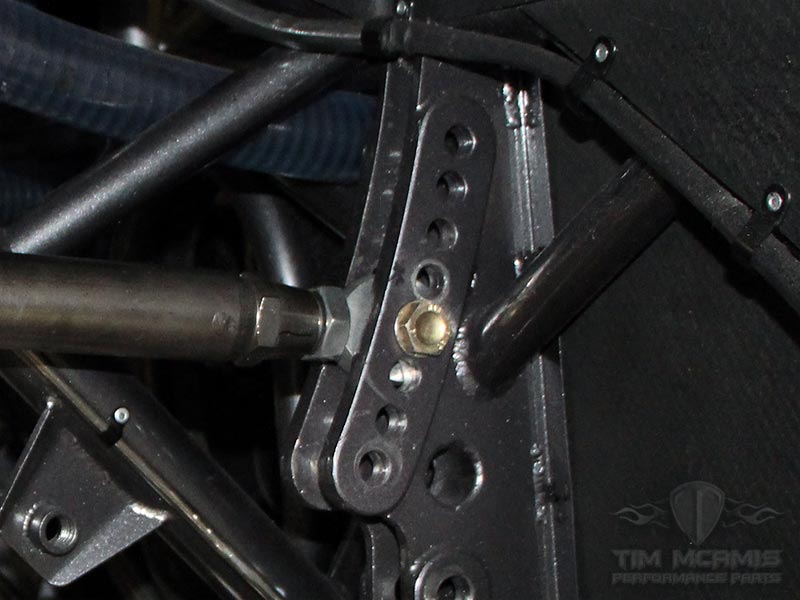

Used as a 4-link bolt for a TMRC 4-link bracket with doubler, this 1/2” diameter alloy steel NAS Hex Head Bolt has a minimum tensile strength of 160,000 PSI and minimum shear strength of 95,000 PSI which makes it perfect for applications where premium-quality, high-strength bolts are necessary.

This bolt is perfect for 1/4″ thick 4-link brackets with 3/16″ thick bolt hole doublers.

BOLT SPECIFICATIONS
Diameter: 1/2″
Length: 2.078” (Measured Under Bolt Head)
Grip Length: 1.625”
Thread: 20

Country of Origin

United States of America
