Ultra Strut (CF Brakes)

Description

Check out this newest design strut from Strange Engineering. Stainless steel construction makes this pro series stut one of the nicest available. This strut is standard equipment on all of our Pro Mod & Pro Stock cars.

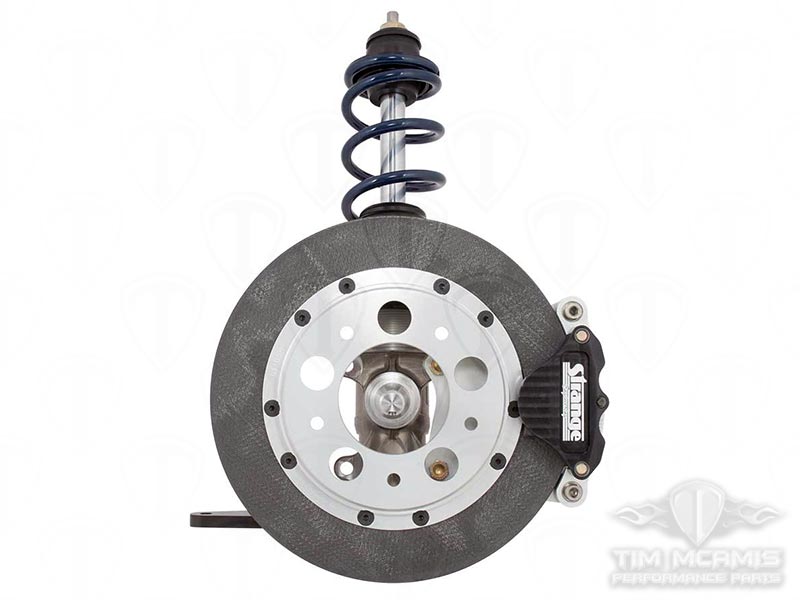

Strange Ultra Strut package. The stud mount strut is externally adjustable with a choice of 2.50″ or 3.50″ stroke. The package will come with a premium chrome moly lower control arm kit with choice of 7/16″ or 1/2″ rod ends, aluminum steering arms, wheel bearings, races and wheel seals. Also included is a set of Hypercoil springs with spring seat bearing kit and a lightweight spindle mount Carbon brake kit.

*This product is drop shipped and may arrive separately from other items ordered.

For Spindle Mount Wheels

Require Wheels Designed For Anglia Spindles
These are not the same as Strange aluminum strut spindles

Features:

Compact design suits low profile body styles
Integral body & spindle allows piston to travel below spindle center-line
Provides additional stroke in a confined space and greater shaft stability

Externally adjustable for rate of extension
Allows fine tuning of front suspension

Strut Package Includes:

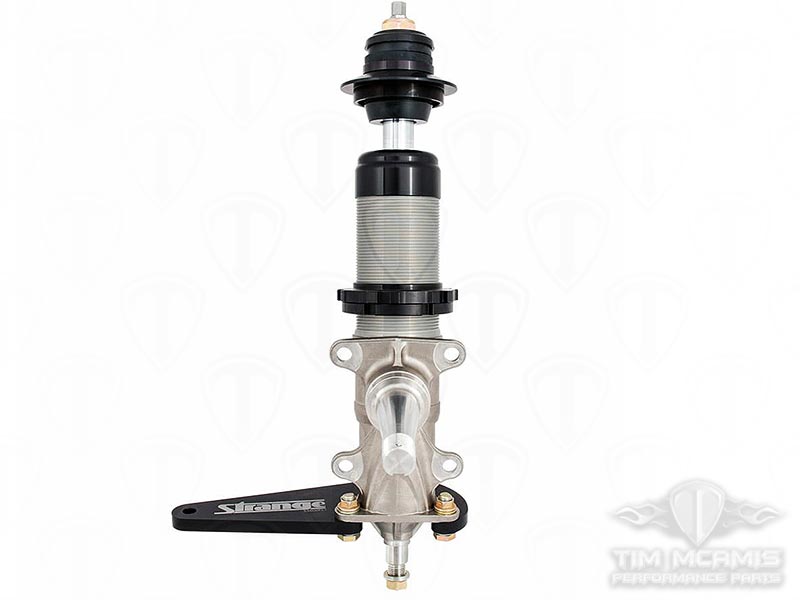

Stud Mount Ultra Struts
• Stainless steel heat treated bodies – Made in USA
• Externally adjustable for extension rate
• Valved specifically for high horsepower vehicles
• Custom valving available
• Choice of 2.50″ or 3.50″ stroke
• 1″ internal travel limiter available on request
• Designed, machined, & assembled by Strange Engineering

Top Spring Seats with Encased Torrington® Bearings
• Reduces steering friction
• Allows height adjustments without springs binding

Billet Aluminum Steering Arms
• Provides stiffness while remaining lightweight
• Includes chrome moly rod ends for outer tie-rods

Timken® Bearings & Races
• Supplied to adapt Anglia style wheels
• Includes oil seals, washers, cotter pins, and spindle nuts

Lower Control Arm Fabrication Kit – S3418 / S3419
• Semi-finished TIG Welded 4130 lower control arms
• Inner tubing adapters
• Teflon® lined spherical ball LCA bearings
• Choice of 7/16″ or 1/2″ Teflon® lined chrome moly rod ends
• NAS bolts, ESNA flanged locking nuts, & 3AN washers

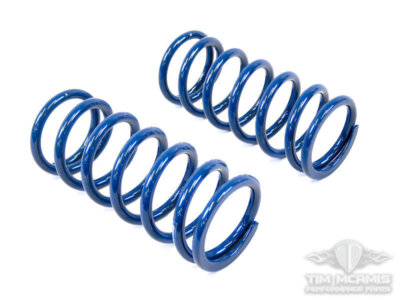

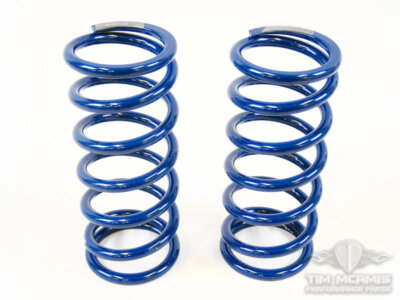

Premium Hyperco Springs
• Chrome silicone steel
• Magnaflux inspected
• Dark blue powder coated
• Choice of spring rate

Choice of Spindle Mount Carbon Brake Kit

C4600WC
• 10″ carbon rotors
• Billet aluminum hats & retaining rings
• Single 1 3/4″ piston billet aluminum calipers
• Slider assemblies featuring Garlock bearings
• Carbon brake pads
• Billet aluminum caliper mounts

C4690WC *
• 11″ carbon rotors
• Billet aluminum hats & retaining rings
• Single 2″ piston billet aluminum calipers
• Slider assemblies featuring Garlock bearings
• Carbon brake pads
• Billet aluminum caliper mounts
• Provides more starting line holding power and high end braking

* Requires forged or billet wheels due to clearance restraints

Note
Brake hoses and lines are not included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings

Stroke:

3.50″
Provides the most weight transfer

3.50″ With 1″ Internal Travel Limiter – 2.50″ Stroke
When the taller body is preferred, but with less stroke

2.50″
The most compact version of this strut
