Billet 4-Link Chassis Bracket (HIMIS) Weld Fixture Set
$55.00
This 4-Link Bracket Weld Fixture Set contains 12 machined spacers with the appropriate bracket spacing (0.850”) to be used with your TMR-2500 Billet 4-Link Chassis Brackets and hardware kit with HIMIS bushings.
Using this fixture set will help you achieve an exceptional fit and finish after welding your 4-Link Brackets in the chassis.
INCLUDES:
• 0.850” Wide Spacers (12)
• Detailed Instructions
*Note – If you are looking for a standard width (0.750″) weld spacer set, see part number TMR-1085-4LK.
- Description
- Country Of Origin
- Reviews (0)
Description
If you’ve ever welded a set of 4-Link brackets in a chassis without having a set of fixtures, you may have ran into loose and tight areas throughout the range of adjustment in the bracket due to material warp after welding.
The 4-Link Bracket Weld Fixture Set eliminates this issue with 12 machined bushings that are tightened in place and spread throughout the brackets hole locations during the welding process.

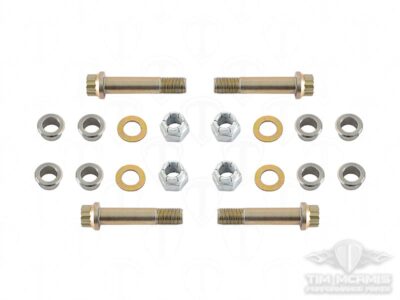

Designed specifically for the TMR-2500 Billet Chassis 4-Link Brackets, this Weld Fixture set provides 0.850” spacing* between your 4-Link brackets which is approximate for the TMR-2500-OP1 Billet 4-Link Bracket Bolt Kit that includes HIMIS bushings for additional rod end clearance using the second row of 4-link hole locations.
INCLUDES:
• 0.850” Wide Spacers (12)
• Detailed Instructions
*NOTE – 0.850″ spacing specific to TMR-2500-OP1 hardware kit that includes misalignment reducer bushings that add .100″ to standard rod end width of 0.75″. If you are looking for a standard width (0.750″) weld spacer set, see part number TMR-1085-4LK.
Country Of Origin
United States of America
