Description

Figuring out the correct geometry when creating a set of tubular lower control arms can be overwhelming. Luckily, a Custom Welded Lower Control Arm Set designed for the Strange Ultra Strut and similar drag racing struts takes a lot of the guesswork out and saves you a ton of fabrication time.

Starting with 7/8” O.D. 4130 tubing, the specific driver and passenger side rear Lower Control Arms are tig welded in a fixture to achieve a specific mounting angle. Connecting to the tube is a low profile 4130 machined spherical bearing cup along with an interface tab welded with proper caster for Ultra Struts.

Front Lower Control Arms feature a 7/8” O.D. 4130 tube with a tig welded clevis that interfaces with the tab on the rear Lower Control Arms.

After you receive your custom made Lower Control Arm Set, simply finish them off with paint or the coating of your choice and install them in your chassis using your 1/2″ bolts chassis mount bolts.

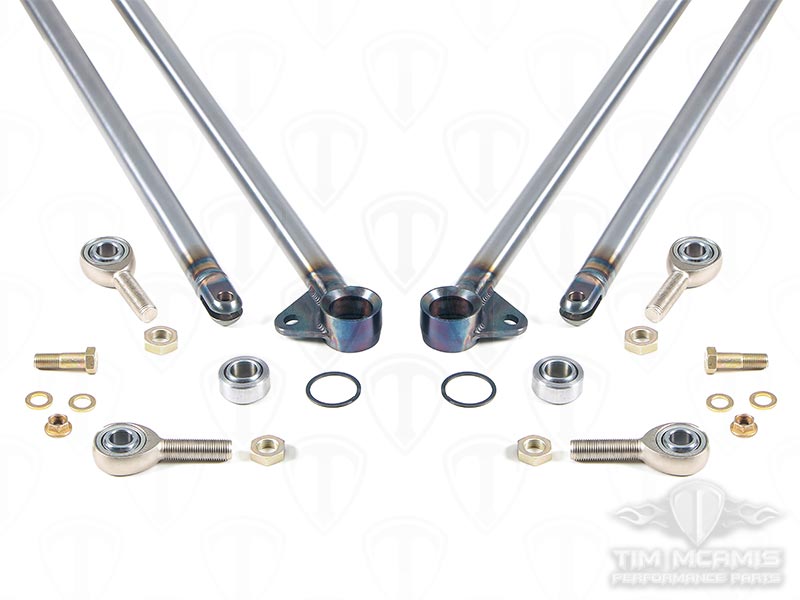

INCLUDES:
• (2) Tig Welded Rear Control Arms (1-DS, 1PS)
• (2) Tig Welded Front Control Arms w/ Clevis
• (2) 5/8” Bore Teflon® Lined Spherical Bearing
• (2) Spirolox® Retaining Ring
• (2) Premium 3/8” AN Hardware Set for Celvis/Tab
• (4) Premium 1/2″ Bore Rod Ends
• (4) Premium Jam Nuts

* FOR 1/2″ I.D. CHASSIS MOUNTS. DOES NOT INCLUDE CHASSIS MOUNTS OR BOLTS.WELDED LOWER CONTROL ARM SET DOES NOT COME PAINTED, COATED OR PLATED.

Watch the video below to see how to use and install this kit.
