Wishbone Mount Kit

Description

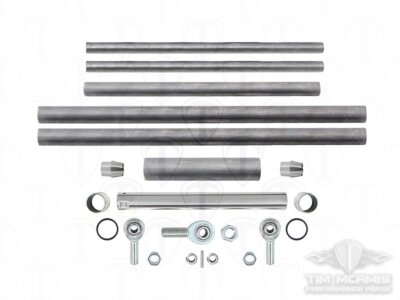

This Wishbone Mount Kit contains all of the necessary tabs, gussets and hardware for mounting your TMR-1170K Wishbone in a forward facing slider configuration.

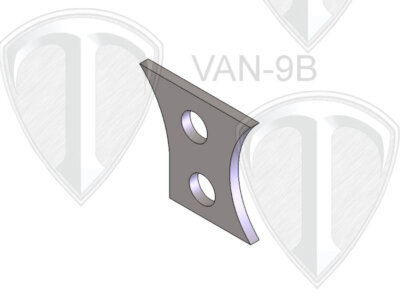

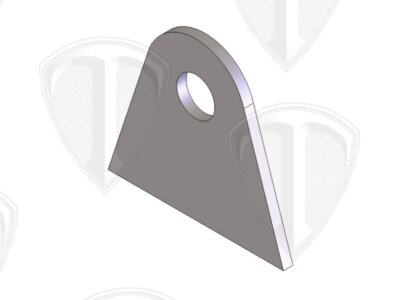

The standard method used for mounting TMRC wishbones throughout the years, this mount kit features a set of CNC cut upper and lower chassis tabs that mount to the rear crossmember and capture the rod end fixed to the wishbone slider. Because this area endures the majority of the abusing during a run, the chassis wishbone tabs are reinforced with a pair of gussets that are profiled for the rear crossmember and provide clearance for the slider rod end to move freely.

Two additional sets of upper and lower wishbone mount brackets are supplied to secure the pair of rod ends at the rear of the wishbone to the rear end housing.

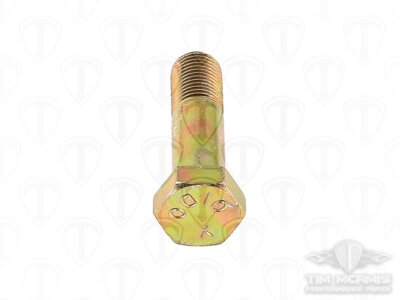

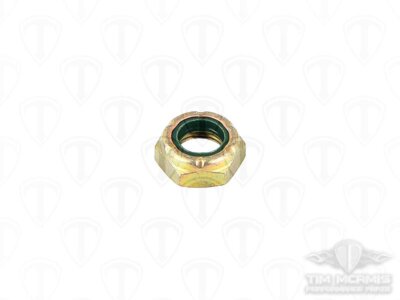

Finishing off the Wishbone Mount Kit is a group of three robust 1/2″ AN bolts that are sized to integrate seamlessly with the welded mounting tabs. The bolts are retained using thin AN washers along with a set of quality Nylock nuts.
