Rear Drive Shaft Enclosure Kit
Price range: $495.00 through $550.00
Rear Drive Shaft Enclosure for Mark Williams, Dewco, Tom’s and Strange Ultra Case cast and billet center sections. Enclosures are also available for applications featuring a standard flat-faced Ford 9″ pinion support bolt pattern. See list below for all compatible applications and variations and check out the videos below for additional details.
OVERVIEW:
• Billet Enclosure Mounting Flange
• Adjustable Drive Shaft Speed Sensor Mount
• 4130 Steel Removable Enclosure
• Black Powdercoat Finish
• Quick Release Enclosure Design
• Made in USA
Mandated in NHRA for Pro Stock, Pro Modified and Top Sportsman
You may also like…
-
-
-
Drive Shaft Enclosure Kit
Price range: $215.00 through $225.00 TMR-1165KSelect options This product has multiple variants. The options may be chosen on the product pageQuick View -
-
Dropped Rear Cross Member
Price range: $69.95 through $149.95 TMR-1233-5020Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
-

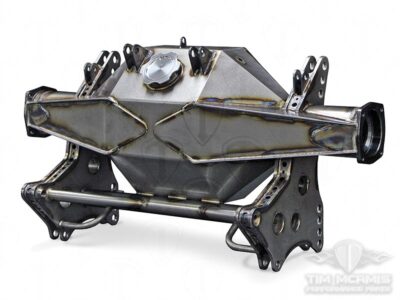

Fabricated Housing: Flanged
Price range: $3,600.00 through $3,960.00 TMR-1160Select options This product has multiple variants. The options may be chosen on the product pageQuick View -

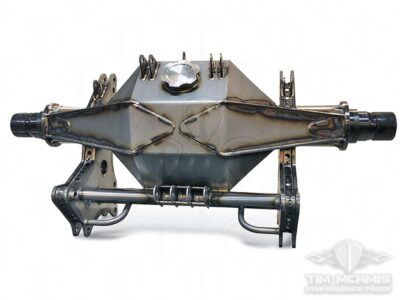

Fabricated Housing: Floater
Price range: $4,850.00 through $5,010.00 TMR-1161Select options This product has multiple variants. The options may be chosen on the product pageQuick View
- Description
- Videos
- Country of Origin
- Reviews (2)
Description

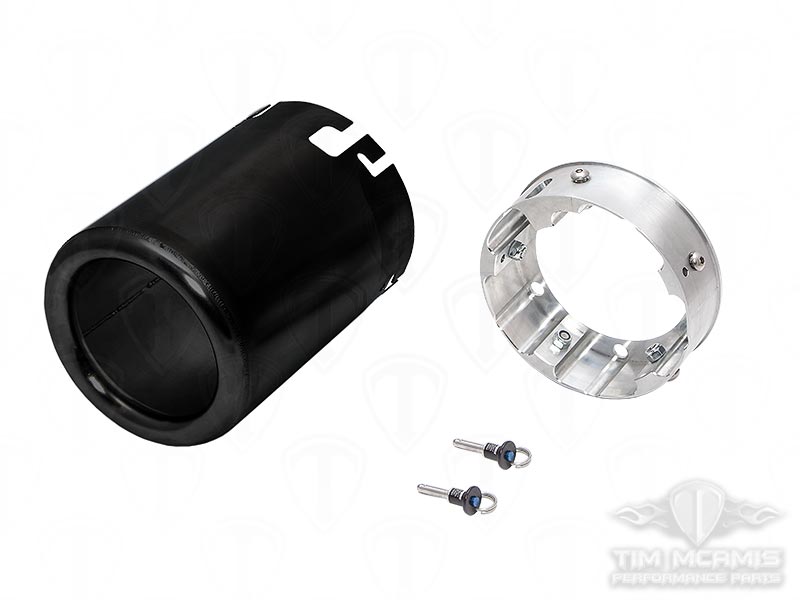

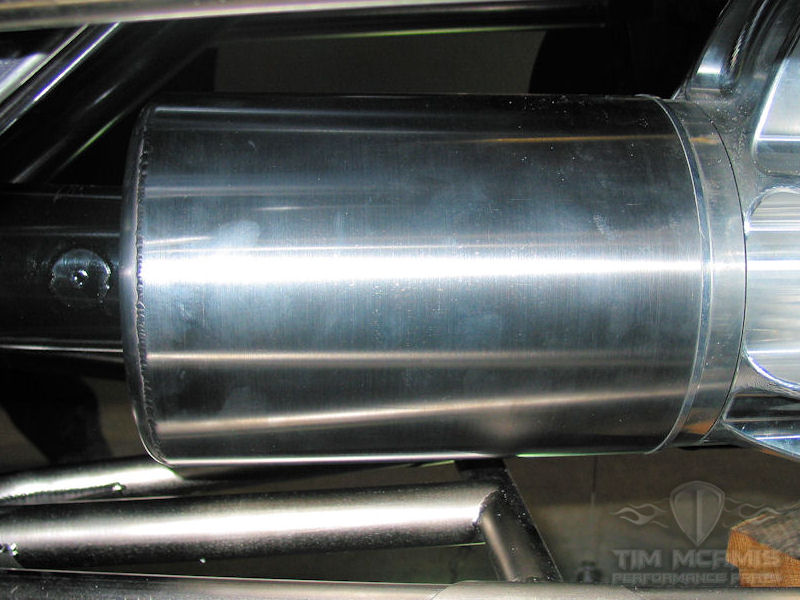

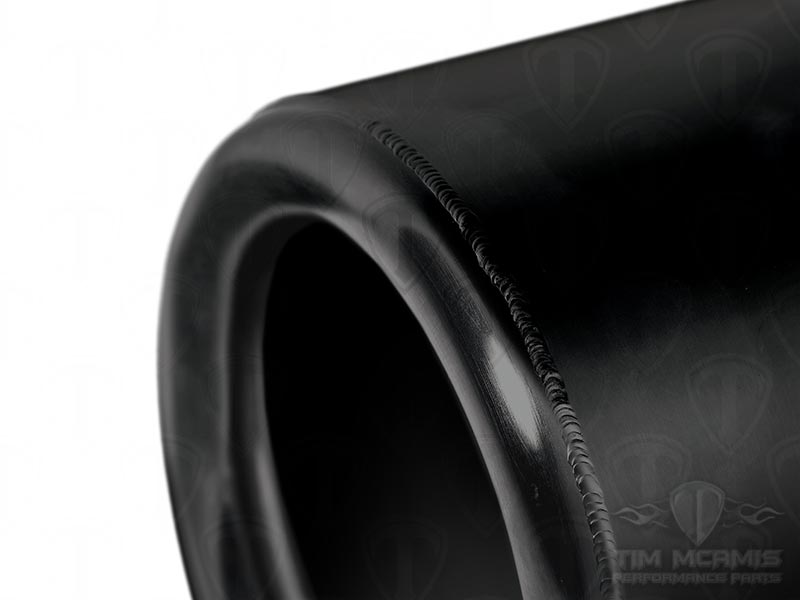

The TMRC 2-piece rear drive shaft enclosure is made of a billet aluminum base that is fully CNC machined and secures to the pinion support. Added to this is a chromoly drive shaft loop featuring a rolled and welded .050″ thick 4130 enclosure. The 6-3/4″ diameter enclosure attaches to the billet mounting interface with a quick release mechanism and removable locking pins.
Rear Drive Shaft Enclosure Kits feature a adjustable speed sensor mounting slots with provisions for 5/16″ and 1/2″ drive shaft sensors. Check out the video overview below.
*Enclosure now features a black powdercoat finish.
Available for:
• Dewco (TMR-1162BK)
• Mark Williams (TMR-1162BK)
• Lazarus 11″ (TMR-1162BK)
• Strange Pinion Supports N1914/N1917/N1920/N1921/N1922 (TMR-1162BK)
• Standard 5-Bolt Flat Face 9″ Ford Bolt Pattern (TMR-1162BK)
• Strange HD Pro Aluminum Center. 5-Bolt, 9″ Ford Bolt Pattern with Star/Gusset Face (TMR-1162BK-OP1)
• Strange Ultra Case Cast (TMR-1162CK)
• Strange Ultra Case Billet (TMR-1162CK-OP1)
**Mandated in NHRA for Pro Stock, Pro Modified and Top Sportsman**
Videos
Country of Origin
United States of America
