Dropped Rear Cross Member
Price range: $69.95 through $149.95
For cars running a tall ride height, short tire or in need of more drive shaft clearance during suspension travel, this dropped rear cross member provides another 1-5/8” of clearance over a straight rear cross member. Check out the video below for a quick overview.
DROPPED REAR CROSS MEMBER CHASSIS KIT UPGRADE KIT
• 1-5/8” O.D. x 0.083” Wall 4130 Tubing – 65” Long
• Includes Variable Height Drive Shaft Half Loop and vertical tubes
• Includes 1-5/8” O.D. x 0.083” Frame Rail Gussets
• Dropped section approximately 15” between bends
• Dropped section provides additional 1-5/8” clearance
Dropped Rear Cross Member can also be purchased individually.
- Description
- Video
- Country Of Origin
- Reviews (0)
Description
With evolution of large diameter carbon fiber drive shafts, longer suspension travel and popularity of smaller tires, the dynamics of a chassis vary greatly during a trip down the racetrack.
When running certain combinations and set-ups, clearance issues can arise from a changing driveline angle during long suspension travel.
Due this, some cars may benefit from installing a rear cross member that provides additional room for the drive shaft to safely operate over the rear cross member of chassis.
This dropped cross member provides an additional 1-5/8” of clearance for the drive shaft. Pre-bent from 1-5/8” O.D. x 0.083 Wall 4130 Chromoly Steel, the dropped cross member measures 65” wide to fit all of our existing chassis kits.

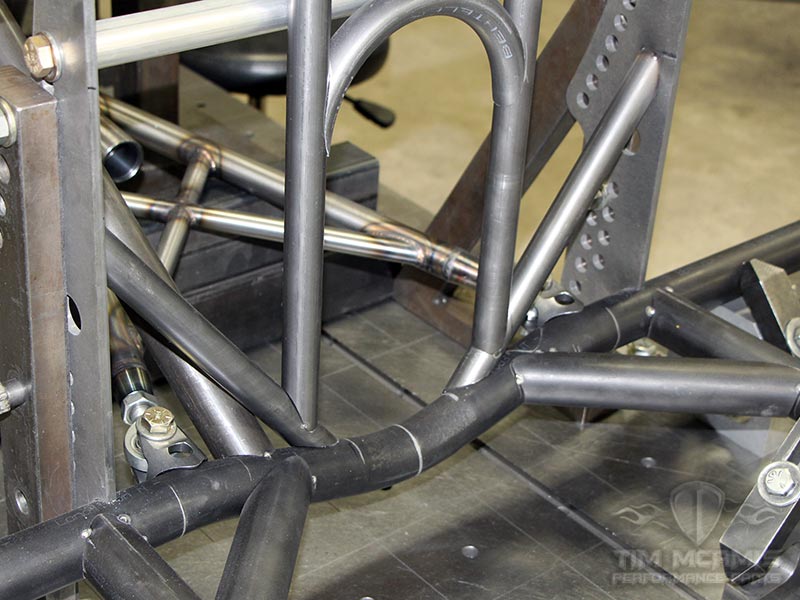

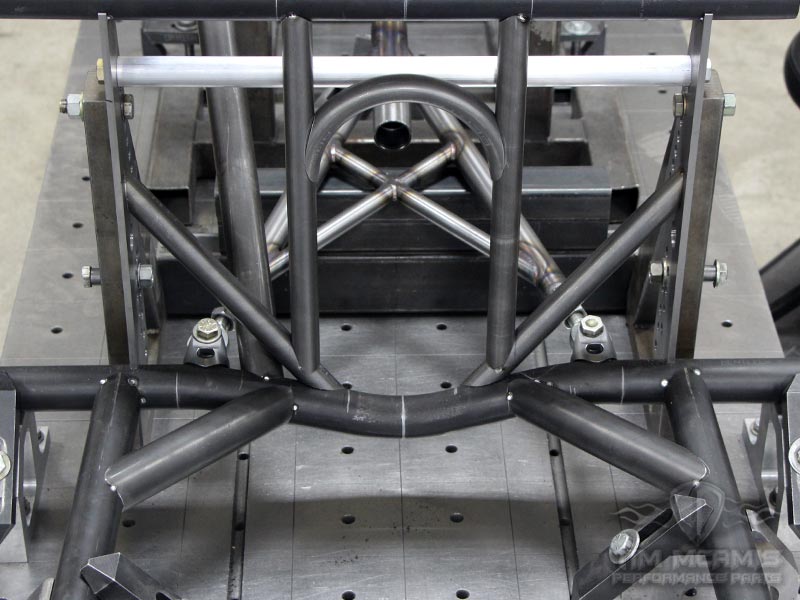

When purchased as a Chassis Kit Upgrade, additional 1-5/8” O.D. x 0.083 Wall 4130 tubing is provided for gusseting the rear cross member to your frame rails. The 360 Degree Drive Shaft Loop (TMR-1053) is also upgrade to a Variable Height Drive Shaft Loop, with two uprights and upper half loop that can be located to fit your configuration.
Watch the video below for a quick overview.
Video
Watch the video below for a quick overview.
Country Of Origin
United States of America OR Germany
Reviews
There are no reviews yet.
