Drive Shaft Enclosure Kit (Automatic)

Description

A minimum 12” enclosure which covers the slip yoke and drive shaft is required in order to protect a driver by retaining a broken or lose drive shaft in the event of driveline failure.

TMRC’s extreme duty Drive Shaft Enclosure creates a double layer of containment with its floating enclosure design. Unlike basic designs where the enclosure is welded to drive shaft loops, this system allows the enclosure tube to take the initial impact of a driveline failure and often retains a drive shaft without causing damage to the outer loops. Repair or replacement of the enclosure section is much easier and less expensive than replacing an entire unit that is to its outer loops.

The 18″ enclosure section is comprised of 0.050″ wall 4130 split into two sections that weld together. This allows you to customize the 5.5″ OD enclosure for various driveshaft diameters and angles.

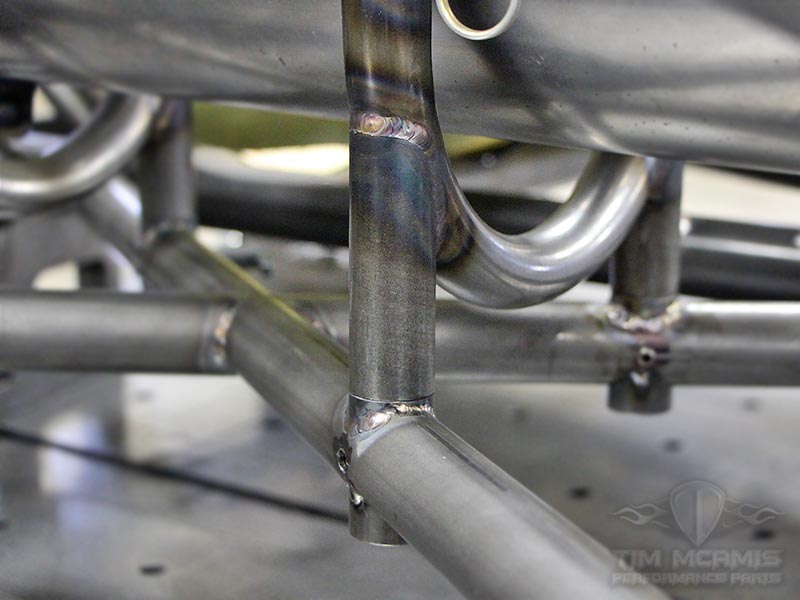

The second layer of protection in the TMRC Drive Shaft Enclosure system is a pair of ultra-strong Removable Drive Shaft Loops that feature superior strength and quality.

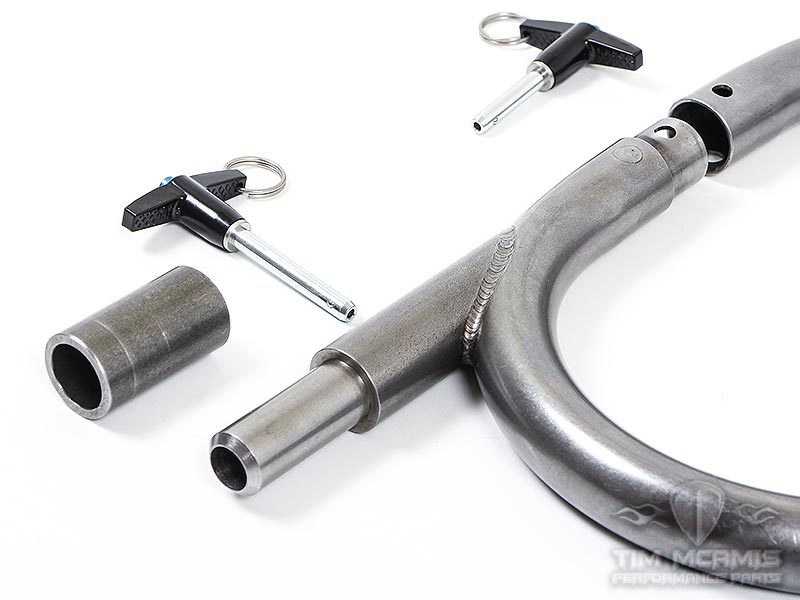

Do you trust a pair of flimsy 3/8” tabs and tiny pull pins to secure your loops in place while a drive shaft is slinging wildly out of control at 6,000 RPM? TMRC’s Removable Drive Shaft Loops utilize a reliable sleeve mount design with solid loop stands that are precisely machined for a smooth, secure fit to the chassis. Heavy duty quick pins unite the loops with your chassis and center enclosure tube.

Check out the video below for a detailed look at our Drive Shaft Enclosure Kits and available options.

Includes:
• 18″ Long x 0.050” Drive Shaft Enclosure Weld Tubes. Approximately 5.5″ OD (2)
• T Spud (2)
• Mounting Tab (4)
• Quick Release Pin (2)
• Removable Drive Shaft Loop (2)
• Loop Quick Pin (4)
• Loop Sleeve (4)
• Loop Sleeve Quick Pin (4)
• Detailed Instructions
