Removable Crossmember Flange
$11.95

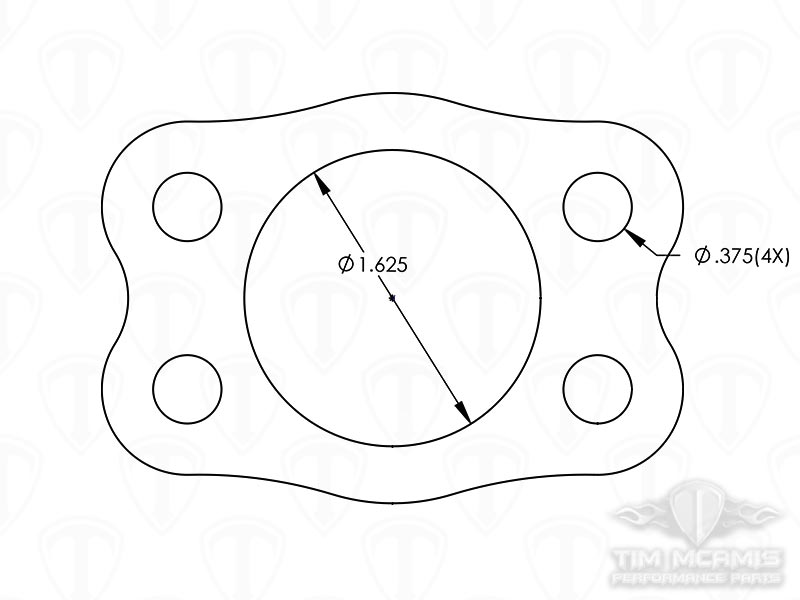

Removable Crossmember Flange tab is precision cut from 4130 steel plate and measures 0.125” thick. The same flange used in our TMR-1279K Removable Crossmember Kit which is race-proven over 273 MPH. See additional images for a dimensional drawing and watch the video below to learn more.
Additional Information:
• Four Holes for 3/8” Bolts
• Cut Out for 1-5/8” Crossmember Tube
• Typical Installations Require Four Flange Tabs
- Description
- Video
- Country of Origin
- Reviews (0)
Description
If you are looking to create your own removable transmission crossmember, these tabs can save a ton of time cutting, shaping and trimming a full set of custom flanges.
The same tab used in our TMR-1279K Removable Crossmember Kit, this flange features four 3/8” bolt holes and a cutout for a 1-5/8” crossmember tube. Precision cut from 4130 steel plate, the flange measures 0.125” thick. Typical applications require four of these flanges.
Check out the installation and dimensional images above as well as the video below for more information.
Video
Country of Origin
United States of America
Reviews
There are no reviews yet.
