Carbon Fiber Belly Pan (Blower)

5 out of 5
1 customer review|Add a review

Price range: $625.00 through $725.00

Carbon Fiber Belly Pan designed for supercharged engine combinations! Constructed from Carbon, Kevlar, core and epoxy, these are strong, reliable and the cosmetics are absolutely stunning! Check out additional images for dimensions.

Available as Belly Pan only or with mount kit including tabs, dzus hardware, etc.

SKU: TMC-1395-

Description

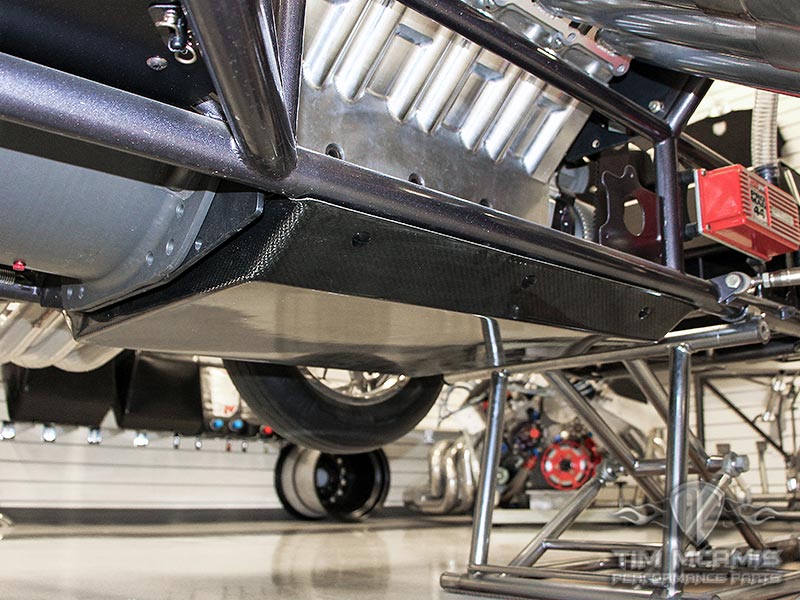

This Carbon Fiber Belly Pan keeps the engine blanket tucked correctly under the car between the frame rails and also catches any possible drips around the engine bay area.

Our Belly Pans are constructed from Carbon, Kevlar, core and epoxy. We use an advanced vacuum process that ensures the highest quality lightweight laminate that can take the punishment and impacts that these belly pans will see on a regular basis.

The cosmetics are absolutely stunning and are completely air free.

The TMRC composite shop has done extensive R&D to produce the best racing composite parts that are years more advanced than the competitors!

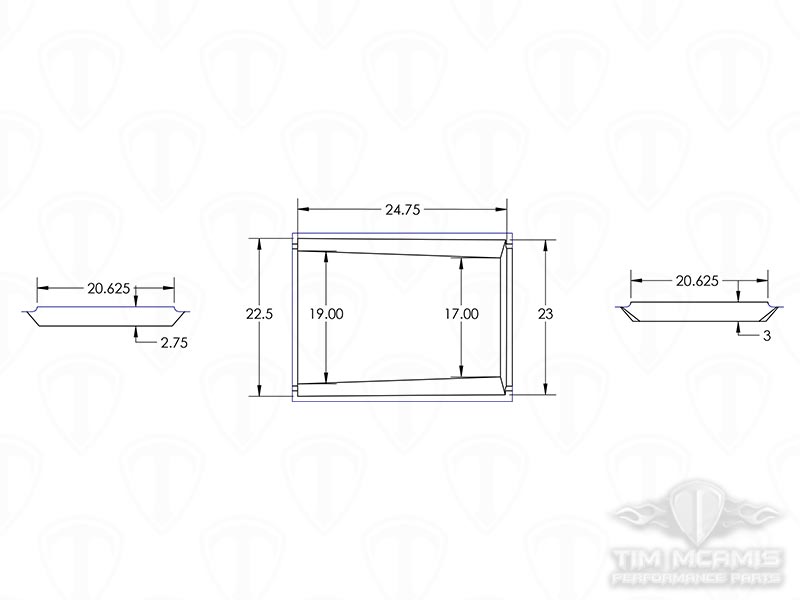

Dimensions: 25”L x 23-1/8″W DEPTH – 2-5/8″ and 3-1/8″

Weight: 2.5 lbs.

Watch the video below for a quick overview.



Video

Watch the video below for a quick overview.



Availability

This item is stocked regularly and is frequently available to ship the same or next day on most orders. However, if it is not in stock, lead times can range from 3 to 20 business days depending on the time of year.

*If time is critical, please call (636) 338-4912 during normal business hours (M-F 8am-4:30pm CST) for current lead times.

Country of Origin

United States of America
