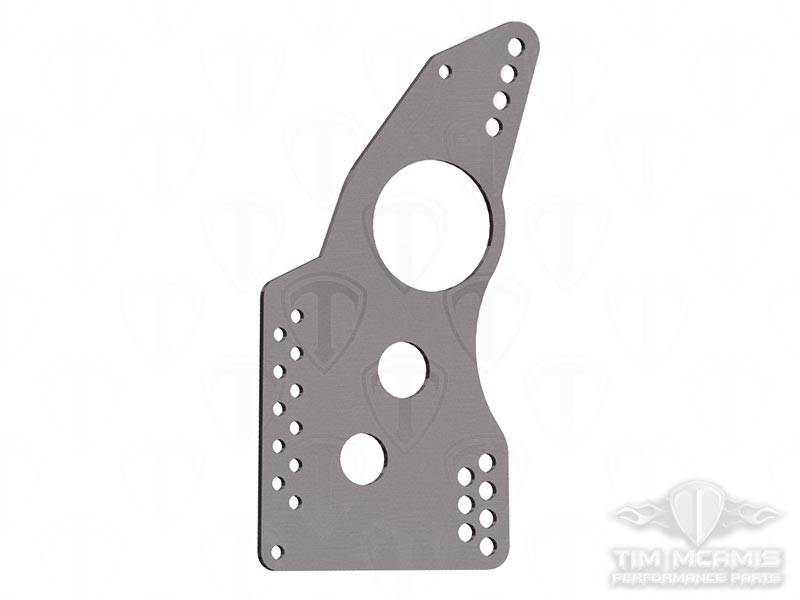

4-Link Housing Plate (Adj. Shock Mount) (DISC)

Description

This housing plate has been discontinued and replaced with VAN-28C25.

Today’s heads-up drag racing environment requires a versatile combination and the VAN-28C Weld-On 4-Link Housing Plate was designed with the diehard racer in mind. Whether you are continually changing tire sizes to run different classes, experimenting with shocks or planning for future upgrades, the VAN-28C Housing Plate can be configured just how you need it.

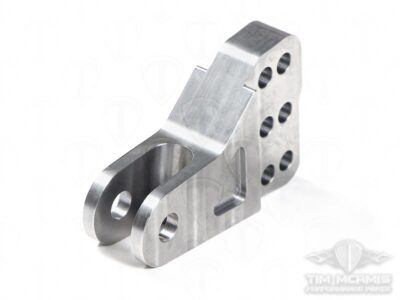

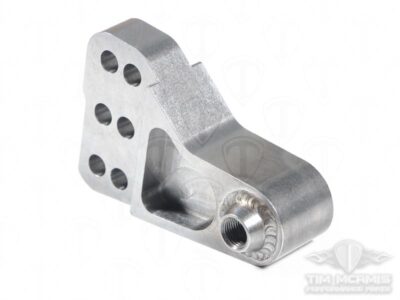

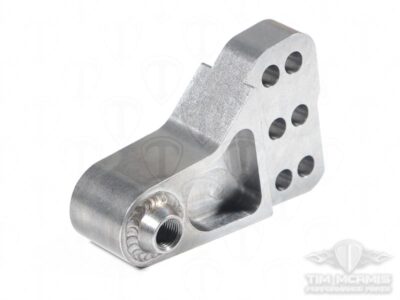

Not only does the housing plate come with a multitude of 4-Link bolt hole locations, it allows you to change entire rear suspension and tire combinations with a unique set of adjustable shock mounts. (Sold Separately: TMR-1215)

Must be purchased as a set of four brackets. Due to the close proximity of 4-Link hole locations on this bracket, lower hole doublers are required and must be purchased separately.

VAN-28C Specifications:
• 0.250” Thick 4130 Plate (Weld-On)
• 3-1/2” Axle Tube Diameter Hole
• Adjustable Shock Mount Locations Up to 4” in 1/2” Increments
• 7 Lower 4-Link Locations with 3/8” Increments
• Lower Wheelie Bar Mounting Hole
• Provision for Anti-Roll Bar Link

Use With:
• Upper 4-Link Hole Doublers Optional (Sold Separately) VAN-28CTP
• Lower 4-Link Hole Doublers Required (Sold Separately) VAN-28CBT
• Adjustable Shock Mounts (Sold Separately) TMR-1215

Watch the video below for more information on Adjustable Shock Mounts.
