Description

Let’s face it… Two guys trying to put on a front end while blindly predicting where the front tree will slip into the chassis can be a pain in the ass if they are unfamiliar with a car. Not only does this Adjustable Front End Mount Kit make the process of aligning and installing a removable front end quick and simple, it adds another tuning feature to a vehicle with the ability to raise or lower the front end.

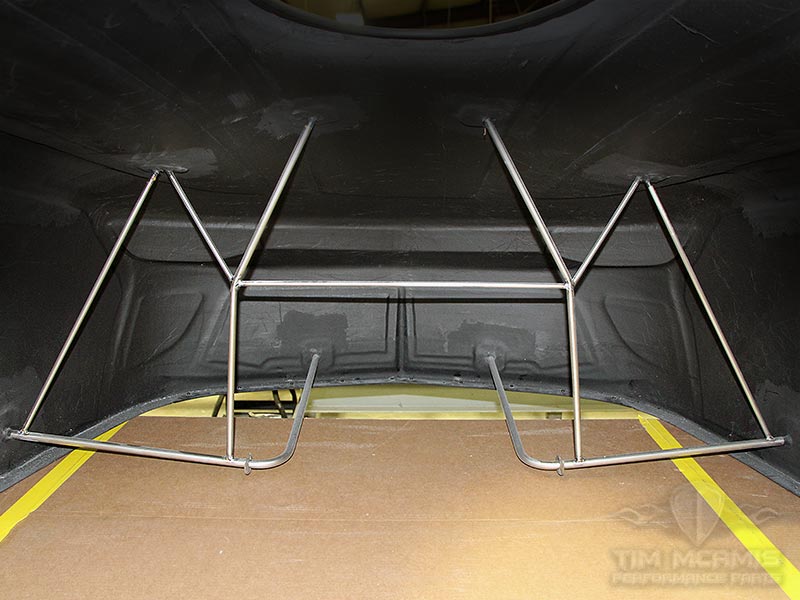

The TMR-1199K-ADJ Adjustable Front End Mount Kit features angled chassis brackets to ensure a larger alignment window with the slide-on front end. Fixed to the front end mount tree are two guide tabs that create outer boundaries for the chassis brackets. After the front mount tree slides fully into the chassis brackets, the guide tabs act as a locking mechanism to prevent side-to-side movement.

Along with being easy to use, the Adjustable Front End Mount Kit doubles as a tuning feature allowing you to raise or lower a front end in 1/4” increments. The ability to modify the height of your front end is extremely useful after making changes to ride height or as a front end begins set and sag over time.

Constructed from 4130 or with an option lightweight titanium upgrade, this kit weighs approximately 5lbs installed or 3lbs with a titanium frame. The Adjustable Front End Mount Kit comes with everything you need to fabricate a front end mount tree with adjustable chassis brackets.

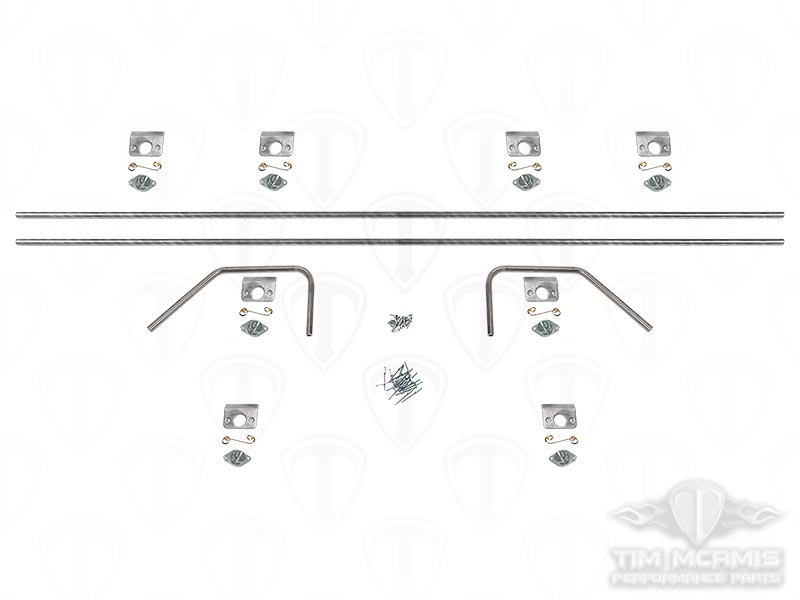

For mounting the rear portion of a front end to the firewall area use a TMR-1198K Front End Mount Kit (Rear) or, see full body mounting packages.

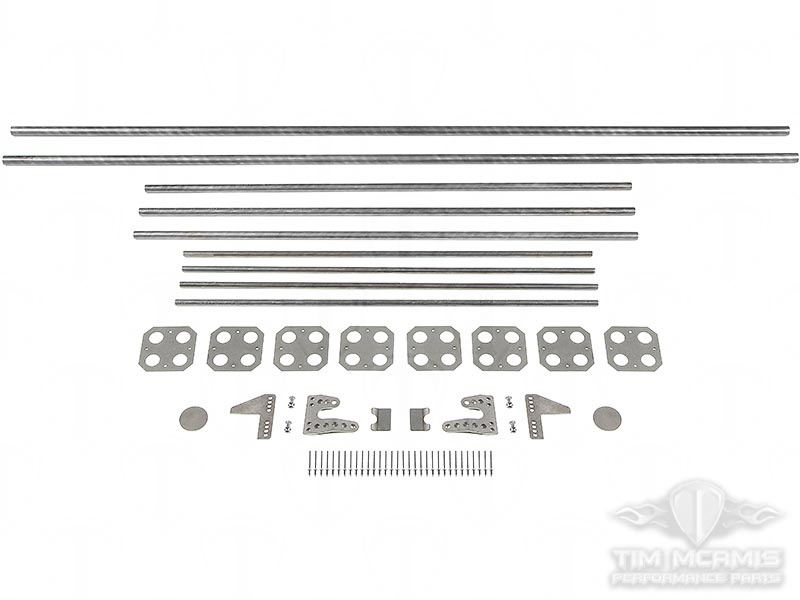

Kit Includes:
• Adjustable Brackets
• Frame Rail Tabs
• Chassis Tube Caps
• Guide Tabs
• Front End Mount Tree Tubing
• Body Mount Plates
• Rivets & Hardware
• Detailed Instructions
