Custom Hose Builder

The TMPP Custom Hose Builder gives you the ability to have pressure tested AN lines with crimped fittings made to your unique application and shipped straight to your door!

Perfect for fuel, oil, coolant lines and more!

Custom hoses start at $15.00 and all parts will be added to your cart for checkout and your length requirement will be sent to our processing department to create and inspect your lines.

Follow the steps below to start creating your custom hose today!

AN Hose Builder Steps
Custom AN Hose Builder
AN Crimp Fittings

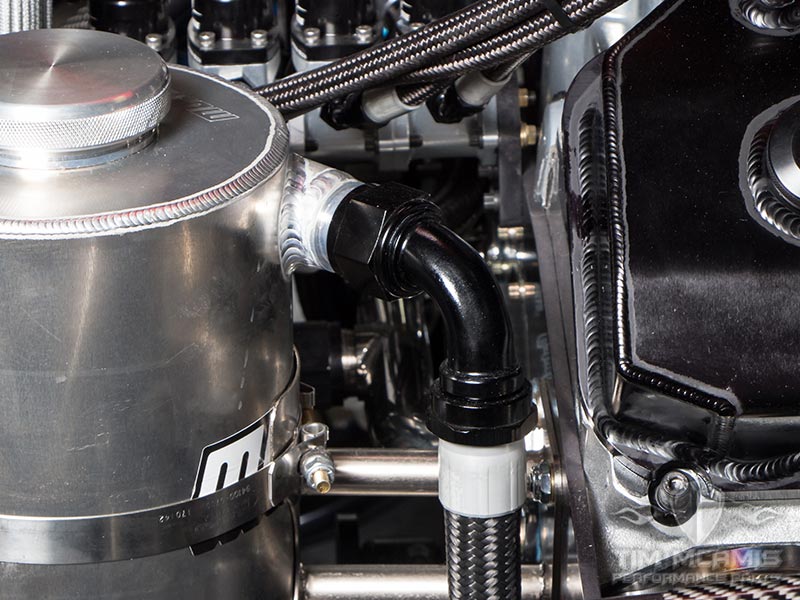

90 Degree AN Crimp Fitting
90 Degree AN Swivel Fitting
AN Race Hose Fittings
AN Race Hose Fittings
180 Degree AN Crimp Fitting

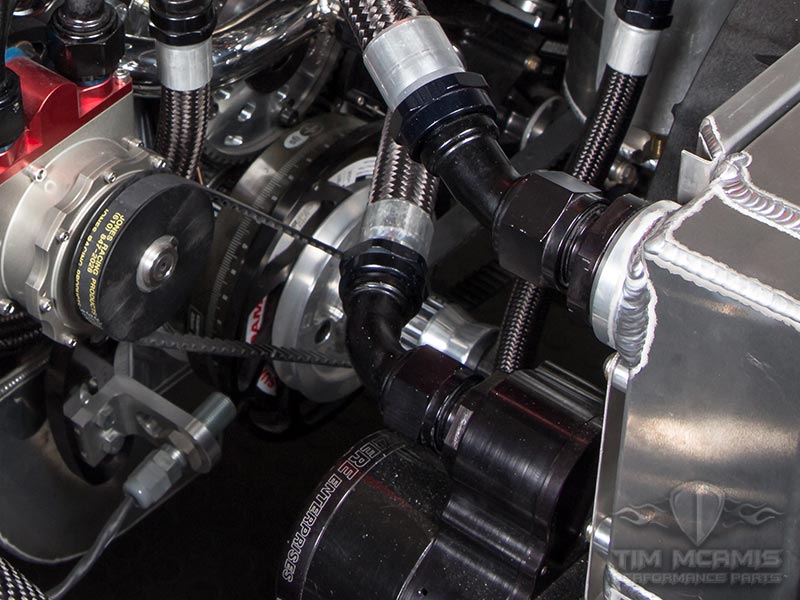

45 Degree AN Fitting
AN Crimp Fitting
Custom AN Hose Builder
AN Crimp Fittings
90 Degree AN Crimp Fitting
90 Degree AN Swivel Fitting
AN Race Hose Fittings
AN Race Hose Fittings
180 Degree AN Crimp Fitting
45 Degree AN Fitting
AN Crimp Fitting
(1) Select Hose AN Size
(2) Choose First Hose Fitting
(3) Choose Second Hose Fitting
(4) Determine Hose CUT Length
(5) Complete

(1) Select Hose AN Size

Choose hose size, select the fittings you would like installed and determine your hose length.

  • AN Hose Options *

    Pricing will be updated after choosing fittings and entering hose cut length.

  • Premium AN Hose Information *

    Recommended for Motorsports applications, the black synthetic rubber core is resistant to oil, fuels, coolants, and alcohols.
    • 500 PSI working pressure covers most oil, water, and fuel systems you may encounter.
    • Reinforced with a single braid of bright corrosion resistant type 302 stainless steel wire braid.
    • Operating range of -40° F to +300° F.
    • Black Braided Nylon Cover makes this lightweight hose both durable and attractive.
Next

(2) Choose First Hose Fitting

These high quality AN Hose Ends feature a crimp collar, that threads onto the Hose End body to assure a perfect crimp connection every time. Additionally, their unique "double swivel" design makes them adjustable in the field! AN Fittings After choosing hose size, select your first fitting to be installed. First step (AN hose selection) must be completed before available fittings are shown.

  • -6 AN - First Fitting *

    Select only one product and move to next step.

  • -8 AN - First Fitting *

    Select only one product and move to next step.

  • -10 AN - First Fitting *

    Select only one product and move to next step.

  • -12 AN - First Fitting *

    Select only one product and move to next step.

  • -16 AN - First Fitting *

    Select only one product and move to next step.

PreviousNext

(3) Choose Second Hose Fitting

AN Fittings After choosing first fitting, select the fitting to be installed on second end of hose. If no fitting, leave as "none" and hose will be cut on end.

  • -6 AN - Second Fitting *

    Select only one product and move to next step.

  • -8 AN - Second Fitting *

    Select only one product and move to next step.

  • -10 AN - Second Fitting *

    Select only one product and move to next step.

  • -12 AN - Second Fitting *

    Select only one product and move to next step.

  • -16 AN - Second Fitting *

    Select only one product and move to next step.

PreviousNext

(4) Determine Hose CUT Length


Enter hose cut length in inches below. Hose cut length to be determined by establishing your overall hose length (flare to flare) and subtracting your two fitting dimensions that can be referenced in the chart below. AN Hose Cut Length

  • -6 AN Fitting Sizes *

    AN Fitting

  • -8 AN Fitting Sizes *

    AN Fitting

  • -10 AN Fitting Sizes *

    AN Fitting

  • -12 AN Fitting Sizes *

    AN Fitting

  • -16 AN Fitting Sizes *

    AN Fitting

  • Hose Cut Length (Inches) *

    Taking fitting measurements into account, enter your hose cut length in inches, up to two decimal places.Min: 8Max: 144

  • Length Calculation *

PreviousNext

(5) Complete

  • After box is checked, review total below and do not forget to add your custom hose to your cart. *

Previous

$15.00

SKU: FRA-LABOR

$15.00

AN INFORMATION

Premium Black AN HoseRecommended for Motorsports applications, the black synthetic rubber core is resistant to oil, fuels, coolants, and alcohols.

  • 500 PSI working pressure covers most oil, water, and fuel systems you may encounter.
  • Reinforced with a single braid of bright corrosion resistant type 302 stainless steel wire braid.
  • Operating range of -40° F to +300° F.
  • Black Braided Nylon Cover makes this lightweight hose both durable and attractive.

AN Hose Crimp FittingsThese high quality AN Hose Ends feature a crimp collar, that threads onto the Hose End body to assure a perfect crimp connection every time.

Additionally, their unique "double swivel" design makes them adjustable in the field!

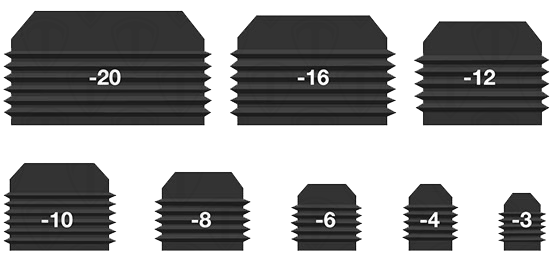

Use the profiles below to determine the correct A-N thread before ordering. The corresponding chart displays the outer diameter of the metal tube and thread size.

A-N Size Metal Tube O.D. Thread Size
3 3/16″ 3/8-24 UNJF
4 1/4″ 7/16-20 UNJF
6 3/8″ 9/16-18 UNJF
8 1/2″ 3/4-16 UNJF
10 5/8″ 7/8-14 UNJF
12 3/4″ 1 1/16-12 UNJF
16 1″ 1 5/16-12 UNJF
20 1 1/4″ 1 5/8-12 UNJF

AN Thread Sizes

Many people over tighten the aluminum fitting on the adapter, which distorts the 37 degree seat, and may cause leakage. Both the threads and the seat surface should have a drop or two of oil to smooth the tightening process. The maximum torque specifications are listed here. (An alternate method of tightening is to bring the nut to “hand-tight” and then rotate it another turn with the proper wrench.)

Fitting Size Max. Torque in Foot Pounds
3 8.75
4 11.5
6 16.25
8 29
10 35
12 45
16 70
20 85

You may also like…

Description

The TMPP Custom Hose Builder gives you the ability to have pressure tested AN lines with crimped fittings made to your unique application and shipped straight to your door.

Simply start by choosing you AN hose size, required fittings and then calculate the length required for your hose!

Custom hoses start at $15.00 and all parts will be added to your cart for checkout and your length requirement will be sent to our processing department to create and inspect your lines.

Most custom lines will be available from 3 to 5 business days. Subject to change due to pricing and availability. Contact our sales department for more information.

Availability

* This is a made-to-order item. Current lead times typically range from 3-5 business days to complete. Subject to change due to availability.

*If time is critical, please call (636) 338-4912 during normal business hours (M-F 8am-4:30pm CST) for current lead times.

Hose Detail

Premium Black AN HoseRecommended for Motorsports applications, the black synthetic rubber core is resistant to oil, fuels, coolants, and alcohols.

  • 500 PSI working pressure covers most oil, water, and fuel systems you may encounter.
  • Reinforced with a single braid of bright corrosion resistant type 302 stainless steel wire braid.
  • Operating range of -40° F to +300° F.
  • Black Braided Nylon Cover makes this lightweight hose both durable and attractive.

Fitting Detail

AN Hose Crimp FittingsThese high quality AN Hose Ends feature a crimp collar, that threads onto the Hose End body to assure a perfect crimp connection every time.

Additionally, their unique “double swivel” design makes them adjustable in the field!

AN Size Guide

Use the profiles below to determine the correct A-N thread before ordering. The corresponding chart displays the outer diameter of the metal tube and thread size.

A-N Size Metal Tube O.D. Thread Size
3 3/16″ 3/8-24 UNJF
4 1/4″ 7/16-20 UNJF
6 3/8″ 9/16-18 UNJF
8 1/2″ 3/4-16 UNJF
10 5/8″ 7/8-14 UNJF
12 3/4″ 1 1/16-12 UNJF
16 1″ 1 5/16-12 UNJF
20 1 1/4″ 1 5/8-12 UNJF

AN Thread Chart

AN Torque Specs

Many people over tighten the aluminum fitting on the adapter, which distorts the 37 degree seat, and may cause leakage. Both the threads and the seat surface should have a drop or two of oil to smooth the tightening process. The maximum torque specifications are listed here. (An alternate method of tightening is to bring the nut to “hand-tight” and then rotate it another turn with the proper wrench.)

Fitting Size Max. Torque in Foot Pounds
3 8.75
4 11.5
6 16.25
8 29
10 35
12 45
16 70
20 85

Country Of Origin

United States of America
