When it comes time to close off the trunk area of your tube chassis build you generally have two options. Fabricate several panels and shapes out of sheet metal or create molds to construct a custom carbon fiber trunk filler.

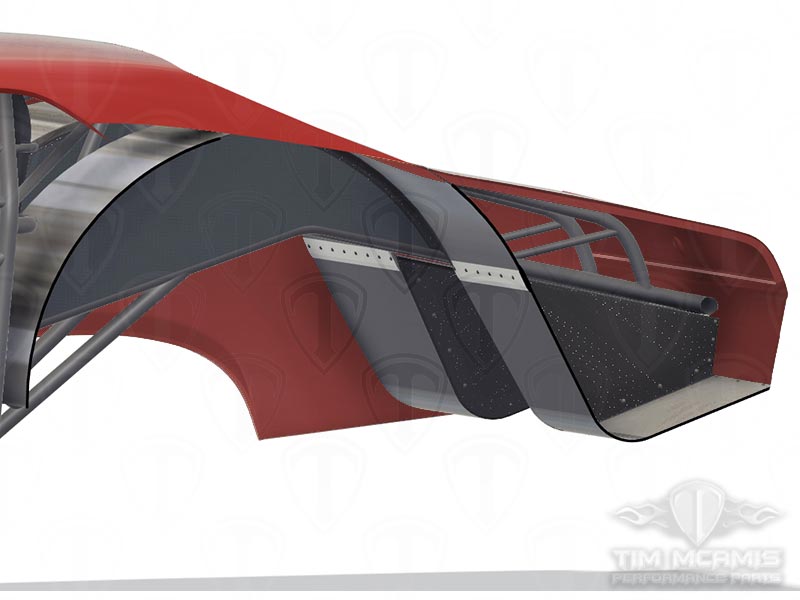

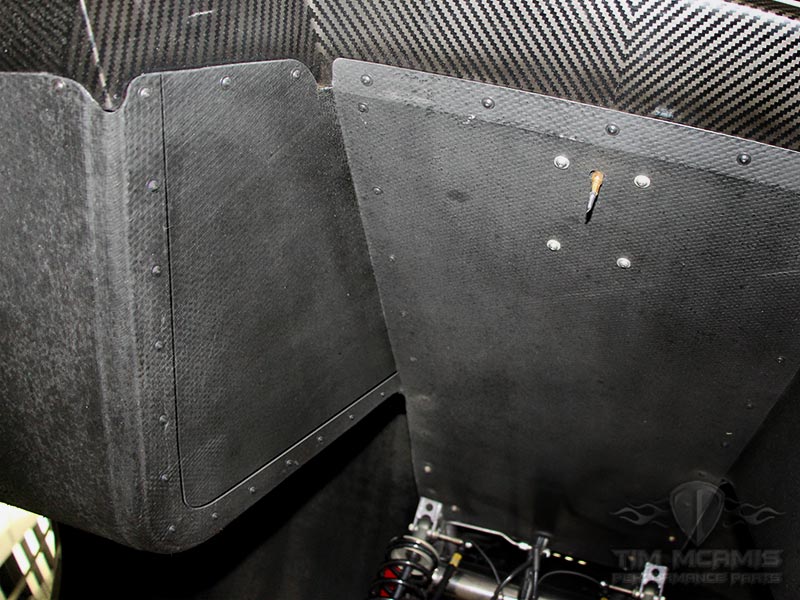

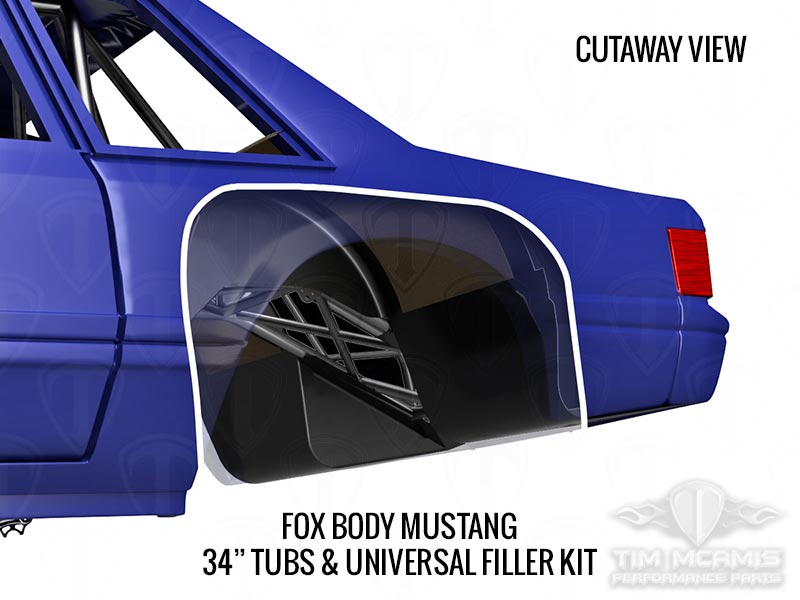

This Universal Carbon Fiber Tub Kit provides the ability to seal off your trunk using pre-molded driver and passenger side carbon fiber sections and side panels that can be profiled and fit to a wide variety of body styles and wheel tub sizes.

Molded with a 95-degree profile, measuring approximately 18” tall and 19” long, the fillers can be opened to a longer profile by simply notching the side panel mounting flange. A 27” width at the wheel tub connector lip allows this kit to fit big and small tire applications by trimming to your desired width.

A 24” width at the rear of the tub filler creates an angled wheel bar opening when mounted parallel to the ground.

Each diver and passenger side filler is connected to your wheel tubs with included black hardware and panel doublers.

Two molded side panels finish off the inside of the tub fillers, creating a wheelie bar opening and flange underneath the tail section of the chassis.

See additional images for dimensions.
