Quarter-Turn Fastener Rail: 5/16”
$39.95
If you are looking for a quick and reliable way to mount a removable panel or decklid with dzus fasteners, but do not want to weld or fabricate using multiple tabs, this 8-hole rivet-on universal dzus rail may be just what you are looking for.
OVERVIEW:
• 43.5” Overall Length
• High Quality Aluminum Construction
• Fits 5/16” Quarter-Turn Fasteners with 1” Springs
• 6” Fastener Spacing, 8 Locations Per Rail
• 3 Fastener Clocking Positions
• Sold Individually with High Quality Avex Mounting Rivets
• Quarter-Turn Fasteners, Springs & Rivets Sold Separately
• Not recommended for hoods. Use larger VAN-144K.
• Made In USA
- Description
- VIDEO
- Country Of Origin
- Reviews (0)
Description

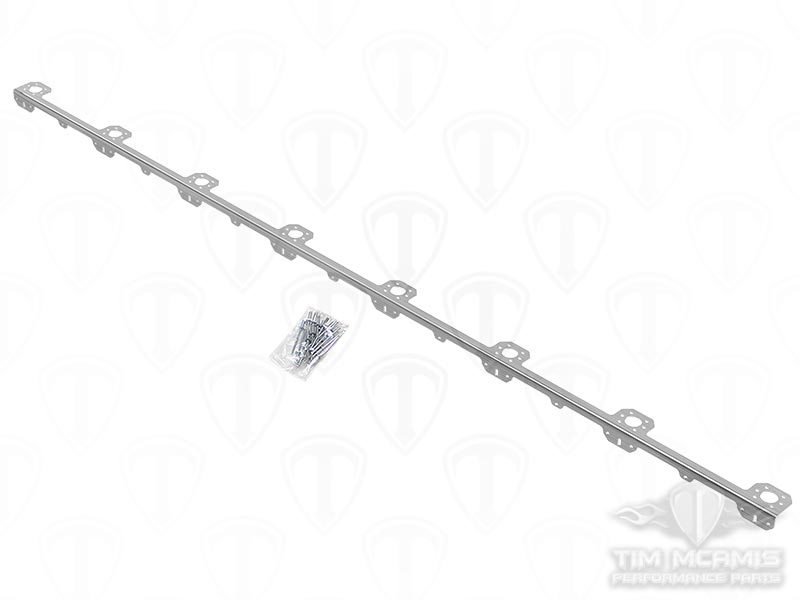

Dzus Rails provide quick and reliable way to mount a removable panel with quarter-turn fasteners, but do not require welding or in-depth fabrication. This Universal Dzus Rail was designed for 5/16” fasteners and features 8 holes spanning 43.5”.
The high-grade aluminum rail is bent 90 degrees to easily mount on trunks, bed rails and other similar locations using the lower rivet holes. A guide slot between mounting locations makes it easy to hold in place with a temporary fastener (Cleco) while forming and bending to follow a body line if required.

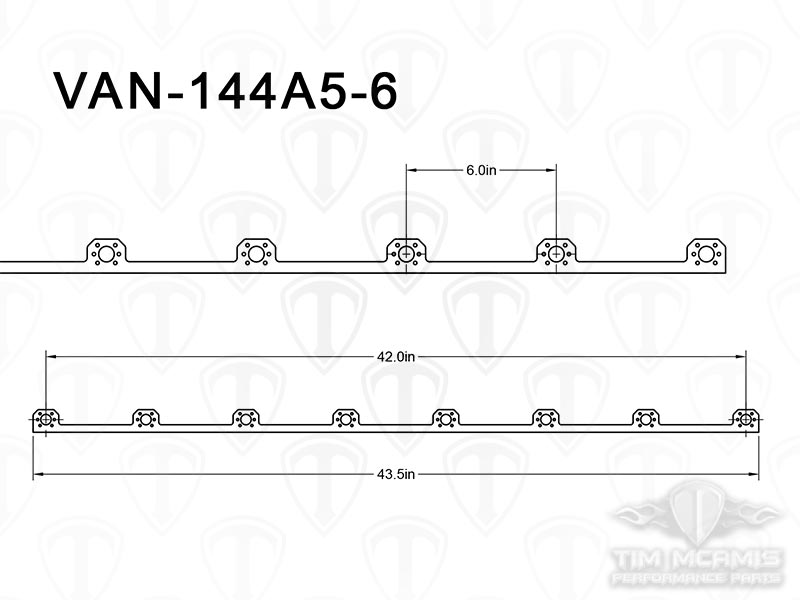

With an overall length of 43.5”, the low-profile aluminum rail features 6” dzus fastener hole spacing and allows you to clock a 5/16” dzus in three different positions.
Universal Quarter-Turn Fastener Rails are sold individually and include high quality mounting rivets. Quarter-Turn Fasteners, springs and fastener rivets are sold separately.
Learn more in the video below!
VIDEO
Learn more in the video below!
Country Of Origin
United States of America
